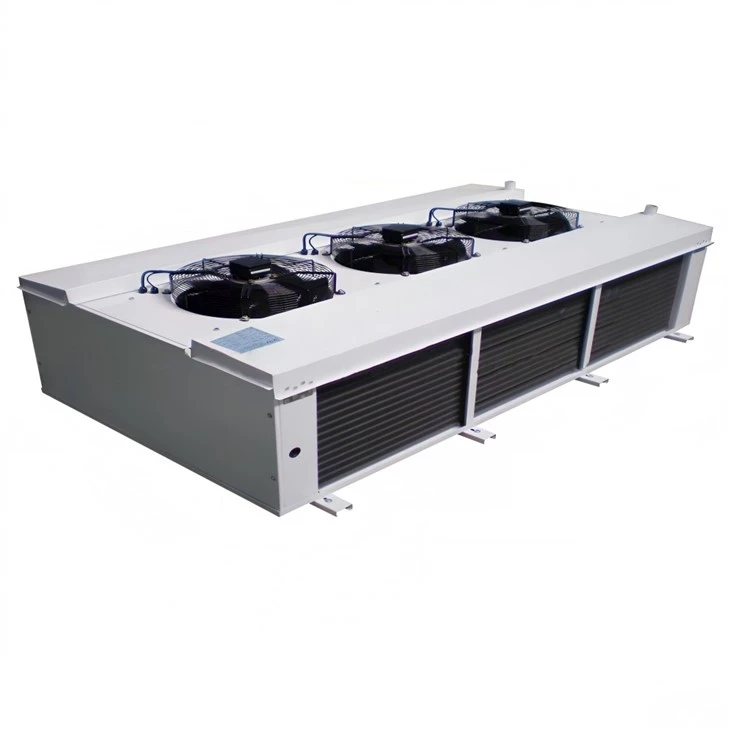

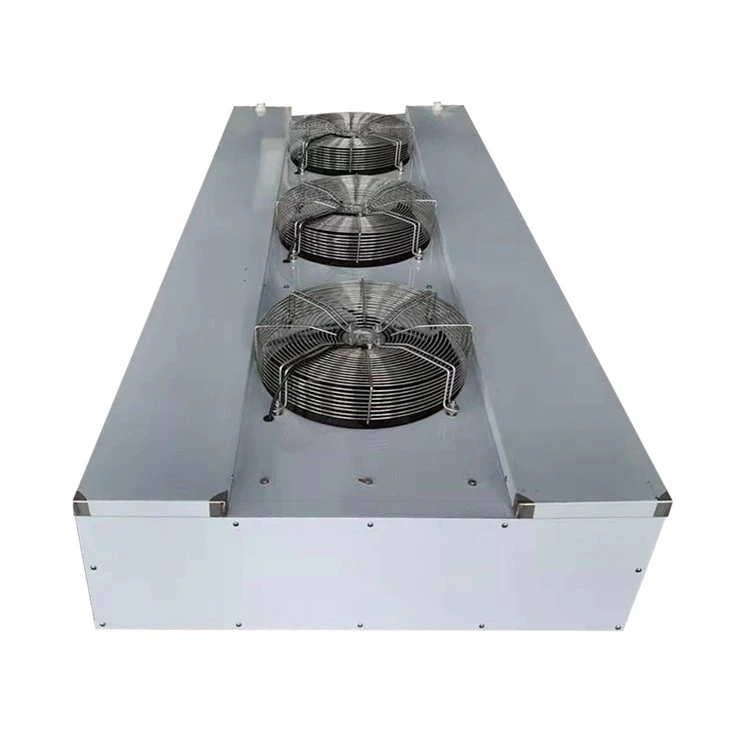

Refrigeration Evaporator
Brand:RFJ
Model number:DSL-32.8/160
Refrigerating Capacity:32.8KW
Nominal Area:160㎡
Coil Internal Volume:20L
Quantity of Fans：3
Description
Steady Cooling for Large High-Temp Cold Storage Scenarios
The DSL-32.8/160 is a heavy-duty double-outlet refrigeration evaporator designed for large-scale high-temperature cold rooms, such as large cold chain distribution centers and bulk fresh produce storage bases. It delivers a stable 32800W cooling capacity with a 160㎡ heat exchange area, 4.5mm optimized fin spacing and 3-fan configuration, effectively solving core pain points of insufficient cooling power and uneven temperature distribution in large storage spaces.
Tackles Core Efficiency Pain Points in Daily Operation
Large high-temperature cold storage often faces operational challenges with standard cooling units. Limited airflow coverage creates cold dead spots in corner areas, leading to inconsistent product storage quality. High ambient temperature and humidity also accelerate frost buildup on coils, triggering frequent defrost cycles that disrupt temperature stability and increase overall energy consumption. This refrigeration evaporator's wide-range airflow design effectively alleviates these issues.
Durable Low-Maintenance Design for Long-Term Use
Built with a modular structure, this unit allows quick access to fan assemblies and heat exchange coils for routine cleaning and maintenance, reducing service time and labor costs. Its high-quality copper tubes and anti-corrosion aluminum fins enhance durability in humid environments, extending the service life of the refrigeration evaporator. Standardized replacement parts also ensure easy sourcing, lowering long-term operational costs for users.
Parameter Table
| Model | DSL-32.8/160 |
|---|---|
| Cooling Capacity | 32800W |
| Heat-exchange Area | 160㎡ |
| Tube Volume | 20.9L |
| Inlet/Outlet Coupling | φ25/φ40mm |
| Fan Parameters | 3×φ500mm, 3×6500m³/h, 3×414W |
| Coil Defrost Power | 4000W |
| Water Dish Defrost Power | 4000W |
Company Profile
Shenzhen Ruifujie Technology Co., Ltd.
Ruifujie is a modern large-scale refrigeration manufacturer with over 20 years of industry experience, offering a full portfolio of scroll, piston, rotary, semi-hermetic and screw compressors, as well as supporting cold storage systems, quick-freezing equipment and ice makers. We provide comprehensive OEM/ODM services to meet diverse project needs, with products exported to Russia, the United States, the United Kingdom, Canada, Turkey, Pakistan, India and other global markets. Backed by strong R&D capabilities and reliable cost-effective quality, we maintain long-term stable cooperative relationships with global buyers and win consistent recognition from overseas customers.
high quality
Advanced Equipment
Professional Team
One-Stop Solution
Experience
Founded in 2009
16 years of experience
Sea-near factory
Fast and convenient road
transport and air freight
Freight Cooperation
Favorable transportation
price and safety
global shipping
7-15 days (under 20pcs)
within 30 days (over 20pcs)
Main Product
Scroll Compressor
Rotary Compressor
Piston Compressor
Semi-Hermetic Compressor
Screw Compressor
Condensing Unit
Cold Room Equipment
Quick-freezing Equipment
Certifications
FAQ
01.Is this unit suitable for retrofitting existing high-temperature cold rooms, and does it require extensive pipeline modification?
02.How does it perform in cold rooms with frequent door opening, such as fresh food sorting warehouses?
03.What are the wearing parts of this unit, and is it convenient to replace them in daily operation?
04.What international certifications do your refrigeration products have for export sales?
05.Can you supply separate spare parts for overseas clients' daily after-sales maintenance needs?
Get Your Custom Refrigeration Evaporator Solution & Quote
With over 20 years of refrigeration manufacturing experience, Ruifujie offers flexible OEM/ODM customization for global buyers. We can tailor this unit to your cold room parameters, voltage, working conditions and branding needs with competitive bulk pricing. Send us your project details and order quantity for a prompt full quotation and technical guidance.
