12KW 380V R32 DC Inverter Ground Source Heat Pump
Brand:RFJ
Model:RFJ-WW-12DC
Heating capacity:12KW
Refrigerant:R32
Voltage:220V/1/50Hz
OEM/ODM:Support
Description
380V Three-Phase Mitsubishi DC Inverter Drive
Driven by a high-efficiency Mitsubishi DC inverter rotary compressor, the RFJ-WW-12DC ground source heat pump delivers a nominal 12 kW thermal output for residential and light commercial projects. Running on a balanced 380V / 3Ph / 50Hz power supply, the variable-speed drive continuously modulates compressor rpm to match real-time building heat demands.
4.3-Inch Color Touchscreen with Smart WiFi Connectivity
Equipped with an intuitive 4.3-inch color touchscreen interface, the system gives users complete visual control over supply/return water setpoints, compressor operating frequencies, and system diagnostics. Integrated WiFi smart control, allowing homeowners and facility engineers to adjust temperature schedules, monitor energy usage, and receive real-time operational alerts from anywhere.
System Flow Safeguards
A high-efficiency brazed plate heat exchanger maximizes thermal recovery from constant 4°C–12°C subsoil energy sources. Built with an internal water flow control module, the unit protects against low-flow or freeze-up conditions while omitting an internal water pump to give installers full freedom to size external circulation pumps to site hydraulics.
Applications
Large Residential Estates
Provides efficient 12 kW hydronic underfloor radiant heating and central domestic hot water for homes ranging from 120 m² to 180 m².
Commercial Office Suites
Delivers low-noise, consistent space heating for commercial office floors, boutique retail shops, and medical centers.

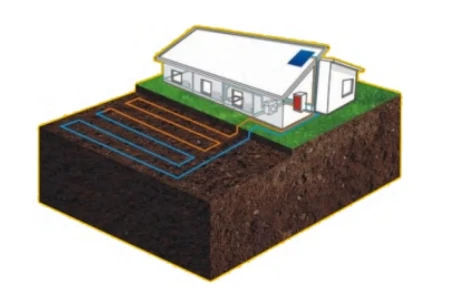

Geothermal Ground Source Arrays
Connects seamlessly with deep vertical rock boreholes, horizontal soil loop fields, groundwater doublet wells, and lake water loops.
Parameter Table
| Model | RFJ-WW-12DC |
| Nominal Heating Capacity | 12 kW |
| Operating Mode | Heating-Only |
| Compressor Type | Mitsubishi DC Inverter Rotary Compressor |
| Power Supply | 380V / 3Ph / 50Hz |
| Refrigerant Options | R32 |
Company Profile
Shenzhen Ruifujie Technology Co., Ltd.
Ruifujie is a specialized manufacturer of advanced HVAC/R hardware and clean-energy heating solutions for global industrial and commercial markets. By pairing strict manufacturing standards with flexible OEM/ODM capabilities, Ruifujie supports engineering partners, HVAC contractors, and distributors across Europe, the Americas, the Middle East, and Asia with high-performance equipment and factory-direct technical service.
16+ Years Experience
Sea-near Factory
Freight Cooperation
Global Shipping
Certifications
FAQ
01.What advantages does the 380V three-phase electrical supply offer on the 12 kW RFJ-WW-12DC?
02.How does the DC inverter compressor optimize energy consumption?
03.What remote functionality is available through the WiFi controller?
04.What is the delivery lead time for sample and commercial orders?
05.How are heat pumps packaged for ocean and air freight?
Every unit is securely anchored inside an export-grade wooden crate with internal protective cushioning.
Build Your Clean-Energy System
Contact our sales engineering desk today to receive complete technical datasheets and an itemized factory quotation. We will return a detailed project proposal within 8 hours.
