Cold Room Evaporator Unit

The D3.5E4.5 cold room evaporator unit represents a next-generation ceiling-embedded cooling solution meticulously developed for medium and high-temperature cold storage environments. Purpose-built to deliver a precise 3.5 kW nominal cooling capacity at a standard 0°C warehouse baseline, this ultra-compact cold room evaporator unit maximizes usable storage volume. It serves as a highly dependable thermal management system for micro-cold storage rooms, fresh food processing cells, and commercial catering refrigeration vaults where spatial footprints are severely constricted.

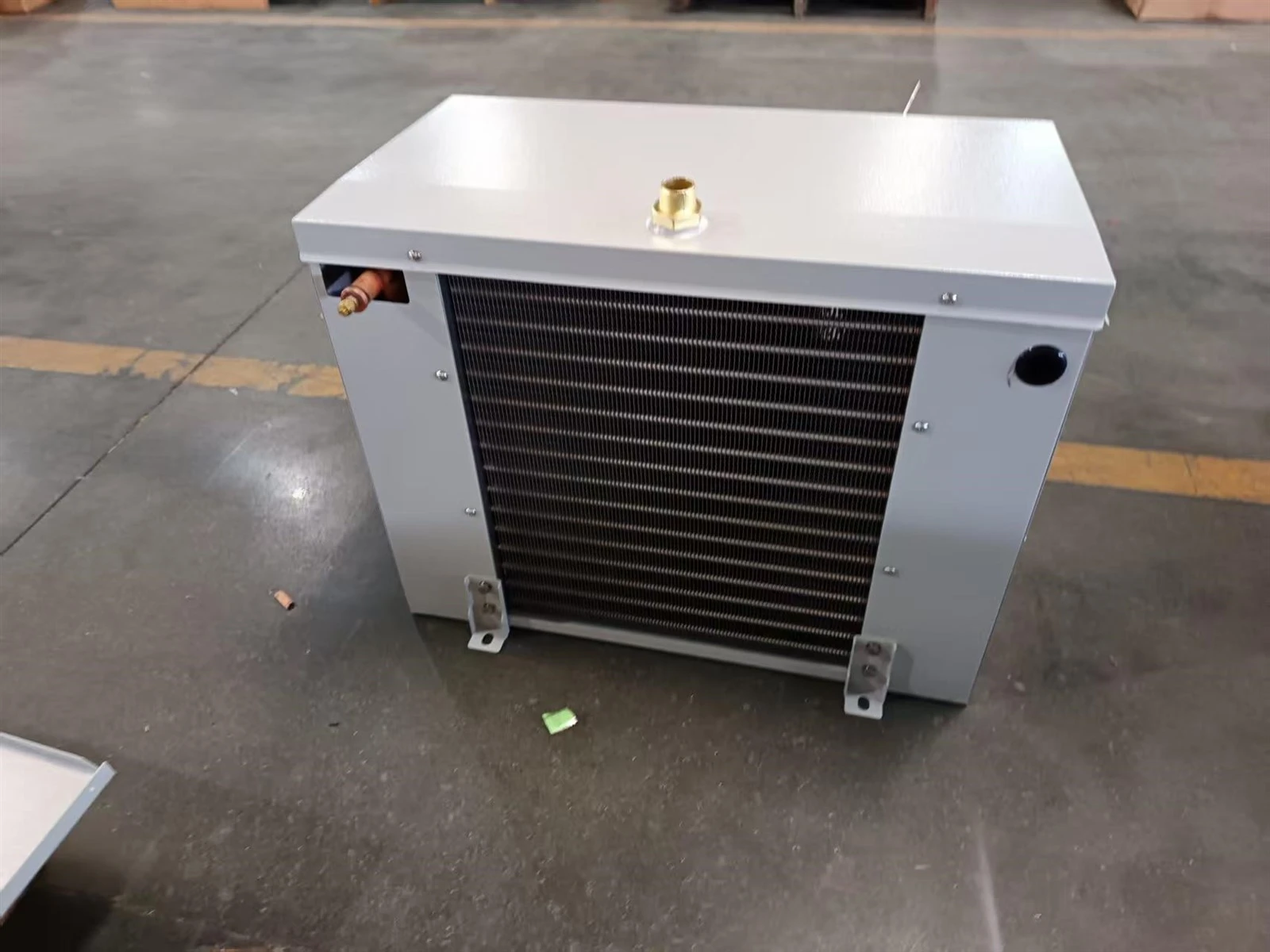

Small-scale walk-in freezers often struggle with localized hot spots and rapid food dehydration due to stagnant air circulation and poor heat transfer. The D3.5E4.5 cold room evaporator unit successfully tackles these operational bottlenecks by utilizing a staggered mechanical copper tube assembly paired with custom dual sine wave louvered fins. This design drastically optimizes internal aerodynamic flow and lowers the oil film thermal resistance coefficient, achieving exceptionally swift heat dissipation and highly uniform temperature distributions.

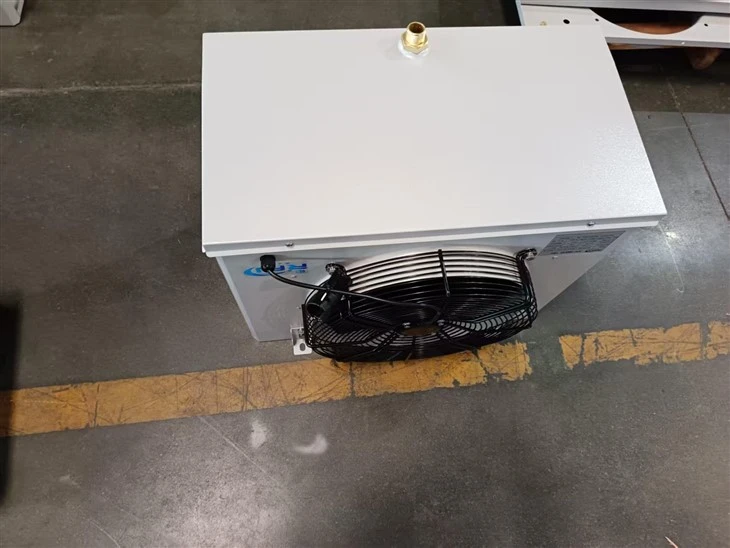

Engineered for enduring industrial service under wet, corrosive conditions, this air cooler features a robust high-grade steel exterior covered in a specialized anti-corrosive powder finish. It is driven by an advanced low-temperature external rotor motor that features an IP55 ingress protection rating and Class F electrical insulation to secure low-noise performance from -40°C up to 60°C. The system provides extensive multi-refrigerant compatibility (R404A, R507A, R23, R134a, R22) and undergoes an mandatory 2.8 MPa clean air pressure test to guarantee absolute operational sealing.
