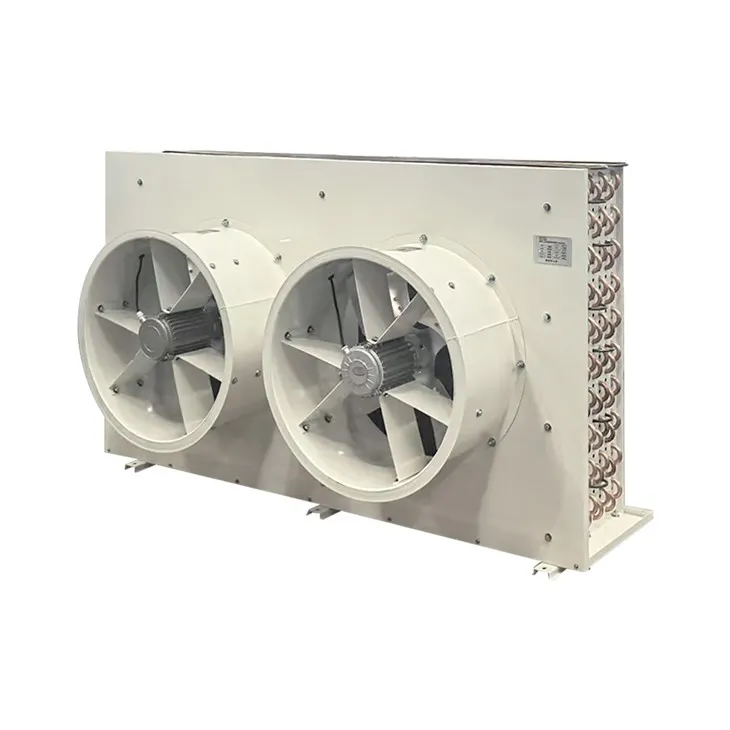

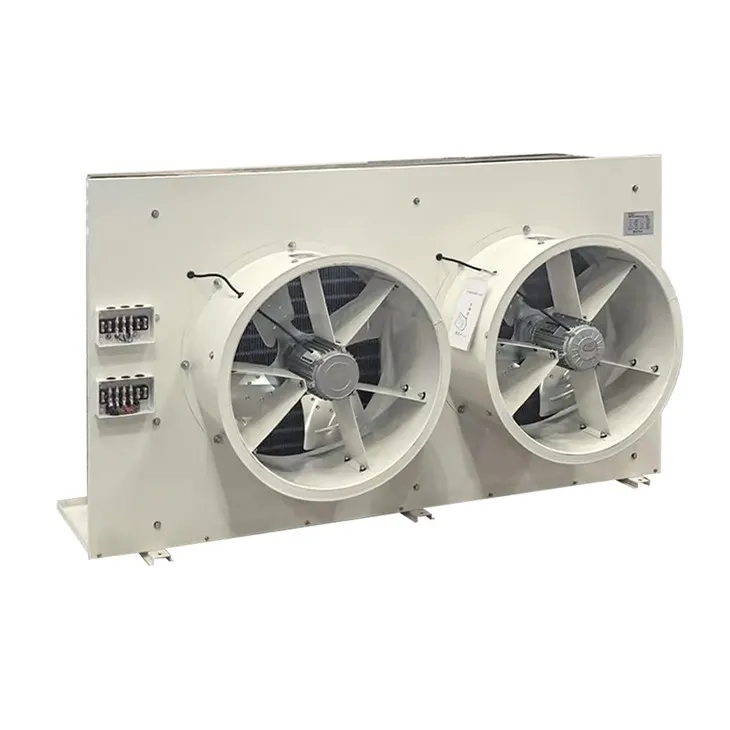

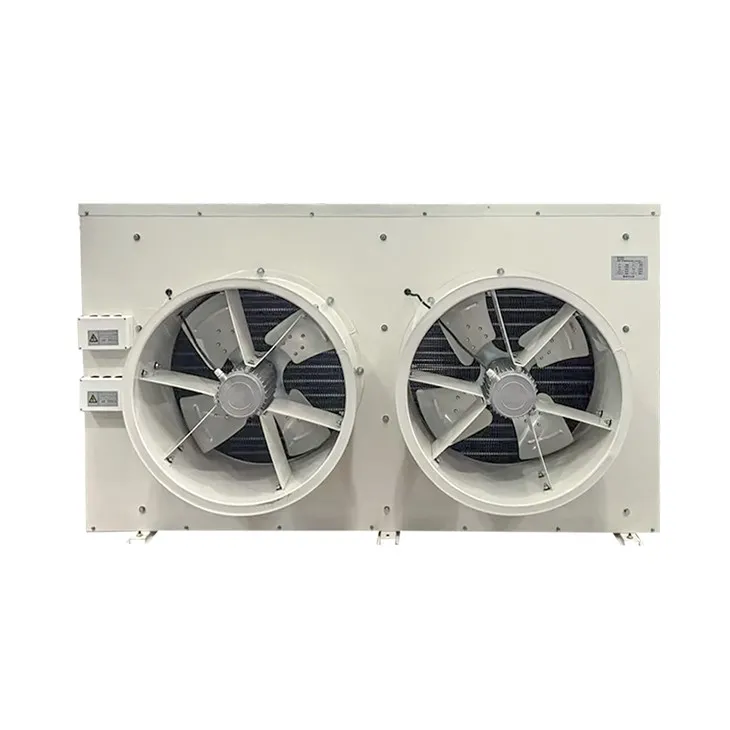

Compact 3126m³/h 1.7KW 2 Fans DJ10 Air Cooler For Small Freezer
Brand ：RFJ
Model number ：DJ10
Refrigerating Capacity: 1.7KW
Nominal Area：10㎡
Coil Internal Volume:2.7L
Quantity of Fans：2
Description
Compact 3126m³/h 1.7KW 2 Fans DJ10 Air Cooler for Small Freezer
DJ-1.7/10 is specially developed for -25℃ quick-freezing cold room, widely matched for small-scale seafood and fresh meat quick-freezing workshops. With 1700W nominal cooling capacity and 10㎡ heat exchange area, the 9mm standard wide fin spacing effectively slows frost blocking under ultra-low & high-humidity surroundings, maintaining continuous efficient refrigeration for quick-freezing processing.
Small-size quick-freezing rooms easily produce local insufficient cooling due to limited inner space and unreasonable air duct design. Compact single-fan layout of this unit realizes concentrated directional air supply, enabling rapid temperature drop of raw food and eliminating uneven freezing issue of products in small processing cold room.
All built-in motor and heating elements adopt special low-temperature resistant raw materials which can stably run continuously under -30℃ extreme standby environment. Insulated wiring complies with low-temperature anti-cracking standard, avoiding circuit breakdown caused by low-temperature aging and improving unit running stability for long-term quick-freeze production.
| Model | DJ-1.7/10 |
|---|---|
| Nominal Cooling Capacity | 1700W |
| Nominal Area | 10㎡ |
| Tube Volume | 2.7L |
| Refrigerant Inlet/Outlet Pipe Diameter | φ12/φ19mm |
| Fin Defrost Power | 2400W |
| Water Tray Defrost Power | 1200W |
Ruifujie manufactures full range of DL/DD/DJ three-series overhead air coolers covering high, medium and low temperature working conditions for over 20 years. Customization on fin pitch, voltage and defrost power is available, and our products are exported to many countries for fresh processing and cold storage projects.
FAQ
Q: What cold room size matches DJ-1.7/10?
A: Fit for 8~12㎡ small quick-freezing room for small aquatic food processing store.
Q: Why DJ series uses 9mm wider fin spacing?
A: Wide fin design reduces frequent frosting clogging for -25℃ ultra-low temperature quick-freeze environment.
Q: Can this unit use R507 low-temperature refrigerant?
A: Yes, we can adjust coil configuration to adapt various low-temperature refrigerants per demand.
Q: How long is production lead time for bulk order?
A: In stock goods deliver within 3 working days; bulk orders take 10~15 working days.
Q: What's your after-sales warranty policy?
A: Core components enjoy 12-month warranty against non-artificial damage.
