RFJ Energy-saving 2625W 4580m³/h DJ15 Evaporator For Low Temperature Storage

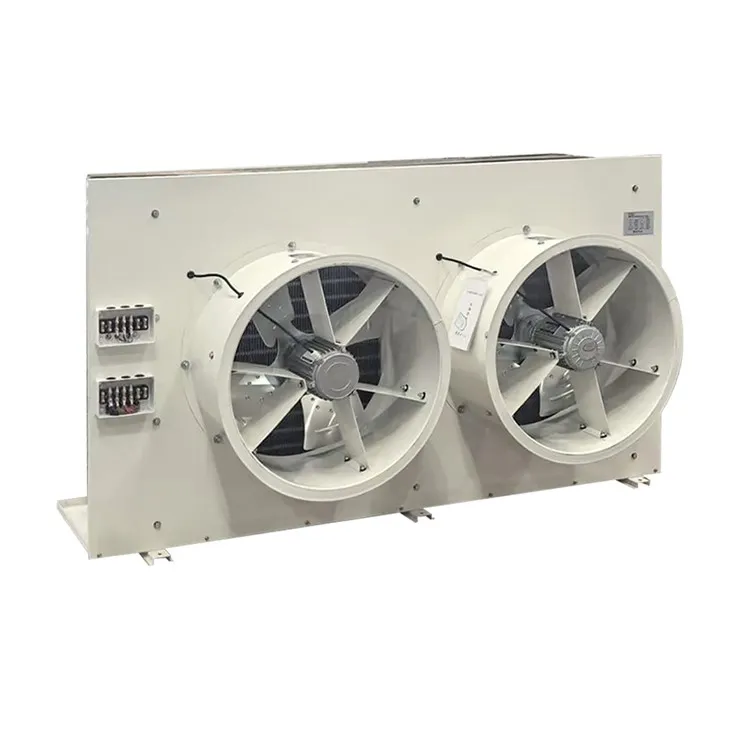

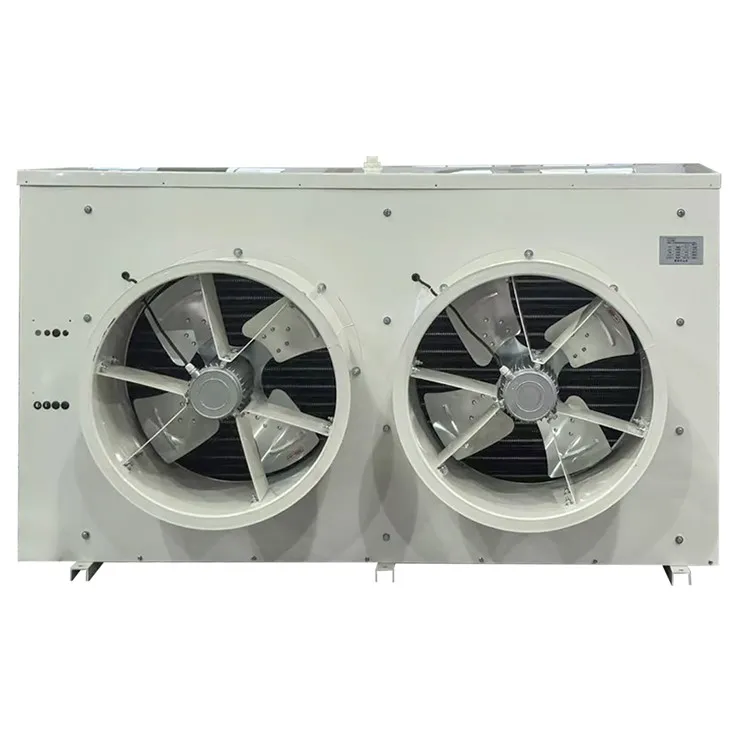

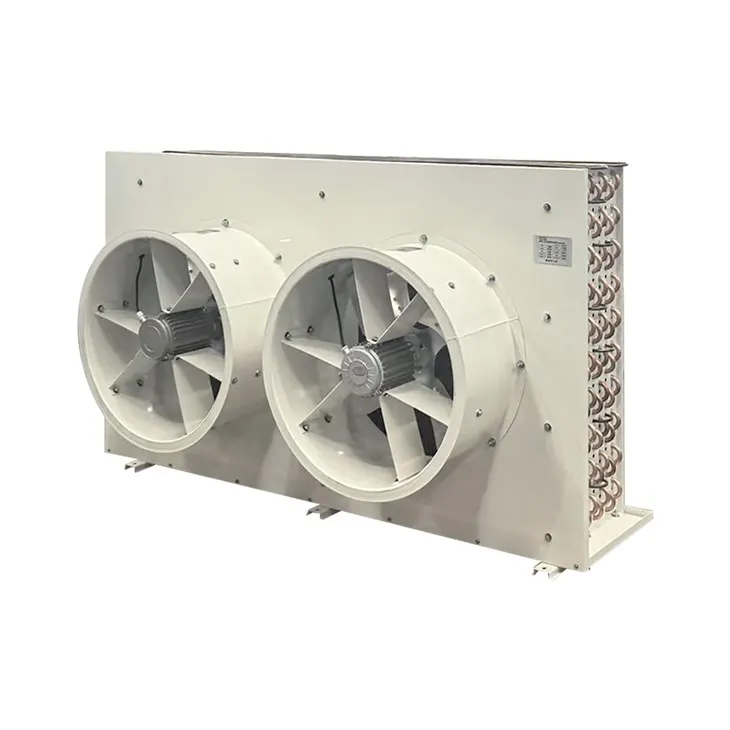

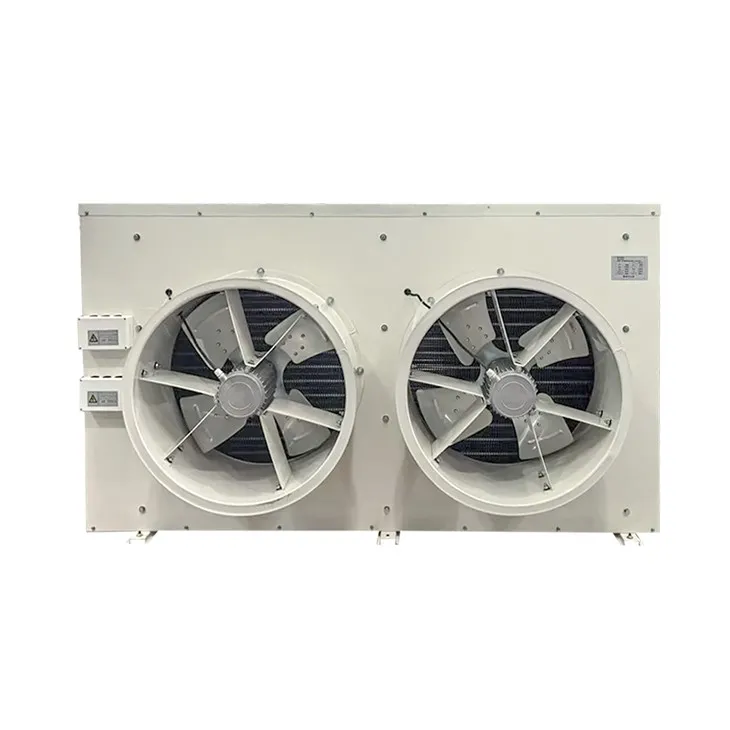

Energy-saving 2625W 4580m³/h DJ15 Evaporator for Low Temperature Storage



Product Detail

---



Product Advantage

---

1. 2625W rated cooling capacity is tailored for 15㎡ ceiling-mounted fresh fruit & vegetable cold storage to save valuable ground floor space.

2. Twin 350mm-diameter fans produce 4580m³/h total airflow with 8m effective throwing distance for homogeneous temperature inside compact cold room.

3. 9.0mm fixed fin spacing optimizes anti-frost performance, matching high-humidity storage environment of fresh produce refrigeration.

4. Standard φ12/φ19 inlet/outlet refrigerant piping enables quick field connection and matches multiple mainstream refrigerant compressor units.

5. 380/220V dual optional voltage design adapts different regional power supply standards for small supermarket cold storage projects.



Technical Data

---

Parameter Item	Specification
Model	DJ-2.6/15
Nominal Cooling Capacity	2625 W
Nominal Applicable Cold Storage Area	15 m²
Tube Volume	3.5 L
Refrigerant Inlet & Outlet Pipe Size	φ12/φ19 mm
Fan Quantity	2 pcs
Single Fan Diameter	350 mm
Fan Rated Voltage	380/220 V
Single Fan Power	129 W
Total Air Volume	4580 m³/h
Air Blowing Range	8 m
Fin Electric Defrost Power	2400 W
Water Pan Defrost Power	1200 W

Company Profile

---

With over 20 years of experience, Shenzhen Ruifujie Technology Co., Ltd. is a large modern enterprise focusing on R&D, production and sales of refrigeration products. We specialize in developing and manufacturing scroll, piston, rotor, semi-hermetic and screw refrigeration compressors, which are exported worldwide. Endowed with strong technical strength and rich experience in cold storage, freezing, quick-freezing equipment and ice machines, we provide professional OEM/ODM refrigeration services and have stable global cooperative partnerships, winning high praise for high-quality refrigeration compressors and competitive prices.



Package and Shipping

---

Supply Ability	1000000 pieces/year,MOQ is usually one piece,
Shipping Time	Sample order in stock within 3 days,Bulk order generally 10-15 working days after receiving deposit
Shipping Method	Support by sea,by air,by express(DHL,FedEx,UPS...)
Payment Terms	TT/Western Union
	30% Advance Payment,70% Final Payment
Shipping Port	Ningbo Port, Shanghai Port, Shenzhen Port
