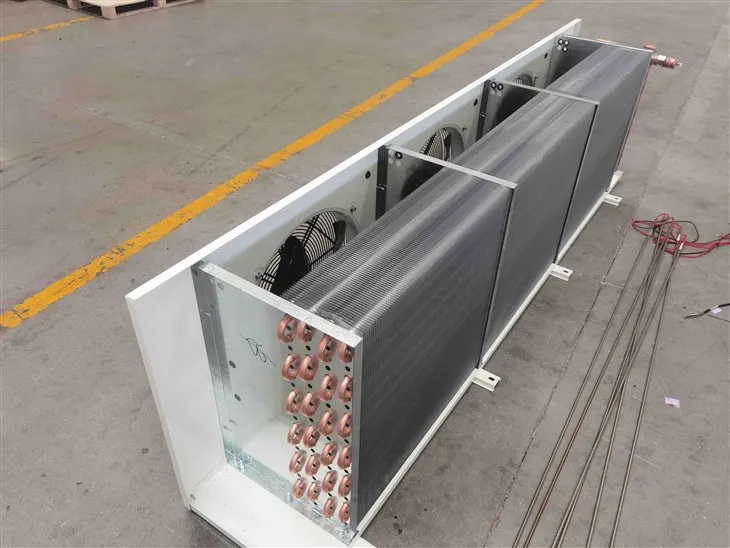

Large-airflow DD120 Air Cooler For Large Cold Storage
Brand ：RFJ
Model number ：DD120
Refrigerating Capacity: 22.3KW
Nominal Area：120㎡
Coil Internal Volume:19.6L
Quantity of Fans：3
Description
RFJ Large-airflow DD-22.3/120 Air Cooler for Large Cold Storage
DD-22.3/120 overhead evaporator is developed for large-scale industrial frozen warehouses and centralized food cold chain facilities running at -18°C. With 22300W rated cooling capacity and 120㎡ heat exchange area, it supplies stable uniform refrigeration to reduce goods dehydration and constant temperature fluctuation, ideal for large meat processing plants and wholesale frozen storage projects.
Large-size cold rooms commonly face uneven air circulation leading to partial over-freezing or insufficient cooling and shortened shelf life of stored commodities. Optimized multi-fan matching and internal flow channel of DD-22.3/120 realize full-space balanced airflow, efficiently fix temperature stratification trouble and preserve original freshness of frozen products.
This evaporator features standardized pipe interface and internal coil layout, which is compatible with R22, R404A, R507 and multiple low-GWP environment-friendly refrigerants. It can perfectly mate with semi-hermetic and scroll compressors from mainstream brands, greatly improving flexibility for customers' existing refrigeration system upgrading.
| Model | DD-22.3/120 |
|---|---|
| Nominal Cooling Capacity | 22300W |
| Nominal Area | 120㎡ |
| Tube Volume | 19.6L |
| Inlet/Outlet Pipe Diameter | φ25/φ40mm |
| Fin Defrost Power | 8000W |
| Water Tray Defrost Power | 4000W |
Ruifujie accumulates over 20 years of professional R&D and manufacturing experience across full DD-series overhead evaporator lineup. We tailor cold air coolers ranging from small household fresh storage models up to oversized industrial-spec units for large logistics freezing projects. Every finished unit undergoes strict hydraulic pressure and air tightness inspection before delivery; flexible customization on fin pitch, input voltage and defrost configuration is available for global cold-chain contractors and food processing manufacturers.
FAQ
Q: What scale of cold room is DD-22.3/120 applicable to?
A: This evaporator is customized for 120~150㎡ large low-temperature freezer space, widely used for centralized frozen aquatic and meat processing factory cold storage.
Q: Can this model match eco-friendly refrigerants like R507 and R454C?
A: We can adjust internal coil piping structure to fit various low-GWP refrigerants based on customers' actual system design requirements before production.
Q: Can defrost operation be controlled by external intelligent controller?
A: Yes, the independent defrost wiring is reserved for external digital timing or intelligent frost-sensing controller connection.
Q: Can we combine this model with other DD types in one full container shipment?
A: Mixed loading with other DD specification evaporators is supported to help clients save international ocean freight cost.
Q: What is our after-sales spare parts supply regulation after warranty expires?
A: Original replacement spare parts are supplied at factory cost price permanently after 1-year global warranty period ends.
