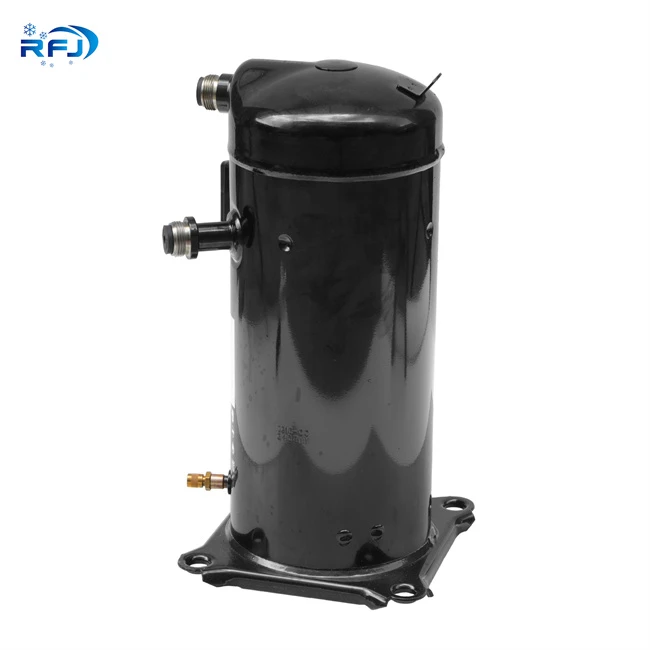

16HP CPL Compressor
We have many good logistics make cooperation for more than 5 years to ensure our products to delivery to all over the world.
Description
Hot Sale CPL Compressor ZF48K4E-TWD-551 with R404
Product introduction
|
Name |
Scroll compressor |
|
Model |
ZF48K4E-TWD-551 |
|
Brand |
CPL |
|
Series |
ZF |
|
Horse Power |
15HP |
|
Voltage |
380-420V/3/50Hz,460V/3/60Hz |
|
Displacement |
24.4m³/h |
|
Oil charge |
4.1L |
|
Package |
16pcs/pallet |
|
HS Code |
8414301900 |
|
Application |
Air conditioning, HVAC system |
Product parameter(Specification)
|
Model No. |
Nom HP |
Displ. cc/rev |
evaporating temperature: °c |
|||||
|
-40 |
-35 |
-25 |
-15 |
-5 |
0 |
|||
|
ZF09KQE TFD550 |
3 |
46.4 |
1200 |
1500 |
2300 |
3300 |
4700 |
5600 |
|
ZF11KQE TFD550 |
3.5 |
57.5 |
1500 |
1800 |
2800 |
4100 |
5800 |
7000 |
|
ZF13KQE TFD551 |
4 |
67.8 |
1700 |
2100 |
3200 |
4800 |
6900 |
8200 |
|
ZF15KQE TFD551 |
5 |
83.3 |
2100 |
2600 |
3900 |
5800 |
8300 |
10000 |
|
ZF18KQE TFD551 |
6 |
98.8 |
250 |
3100 |
4800 |
6900 |
10000 |
12000 |
|
ZF24KQETWD551 |
7.5 |
126 |
3060 |
3800 |
580 |
8500 |
12300 |
14700 |
|
ZF33KQETWD551 |
10 |
166 |
4350 |
5300 |
8200 |
12200 |
17500 |
20800 |
|
ZF40KQETWD551 |
13 |
204 |
5200 |
6400 |
10000 |
14800 |
21300 |
25500 |
|
ZF48KQETWD551 |
15 |
244 |
6000 |
7400 |
11400 |
16900 |
24500 |
29300 |
ZF series compressor performance
Vapor Injection Circuit for Low Temperature Applications The new scroll range includes 6 models from 4 to 15 HP and is designed to offer high efficiency levels at low evaporating temperatures with R404A and R507. It is the ideal choice for condensing units, parallel racks and distributed refrigeration systems. CPL Scroll with Vapor Injection The ZF*KVE scroll compressor cycle is similar to a two-stage cycle with interstage cooling but with one single compressor. The high stage consists of extracting a portion of the condenser liquid and expanding it through an expansion valve into a heat exchanger acting as a subcooler. The superheated vapor is then injected into an intermediate port in the scroll compressor. The additional subcooling increases evaporator capacity.
Shipment details
1) We will send sample shipment within 3 days.
2) Over 15 pieces, we will send order within 15 days.
Payment ways,Delivery time and Packing details.
1)Payment:
A.T/T payment:30% as deposit, the balance before shipment.
B.Western Union:100% advance payments.
2)Delivery:
We have many good logistics make cooperation for more than 5 years to ensure our products to delivery to all over the world.
3)Packing:
Before packaged we will send picture for confirmed, after get client confirmation, we will make stable export wooden package to ensure compressor be protected well.
