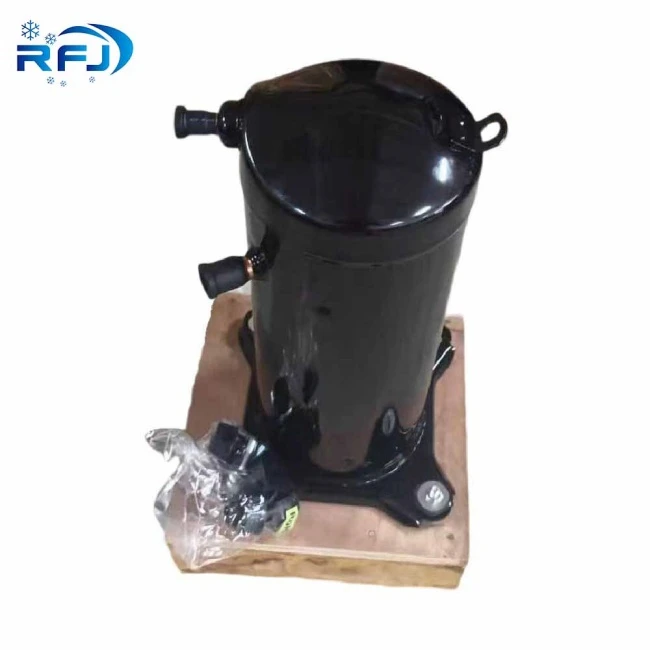

Copeland scroll compressor
Model：ZR81KCE-TF5
Maximum Operating Current：25.2 A
Sound Power：75 dBA Refrigeration Type : R407C
Cooling Efficiency (EER) : 10.8
Capacity Range (BTU) : 77,000
Voltage : 460V / 200-230V / 380V / 208-230V ; 60Hz
Phase : 3
Application : Airconditioning
Description
6.8Hp R22 Copeland scroll compressor ZR81KCE-TF5 for air conditioning
Copeland™ ZR R407C and R134a scroll compressors for air conditioning are designed for high efficiency and reliability in air conditioning, comfort and process cooling applications, with evaporating temperatures around +5 °C. Features such as brazed fitting connections, tandemization and multiple refrigerant capability provide for the needs of a more demanding market.
Specifications
Refrigerants compatibilitiesR-22, R-407C, R-134a
Voltages200-220 V at 50 Hz, 200-230 V at 60 Hz
Frequency50, 60 Hz
Phase3
Displacement18.8 m³/h
Overall Dimension / Net Weight246 x 246 x 456 mm (W x L x H) / 39 kg
PED Category1
Low/High Side PS20/29.5 bar(g)
Maximum Operating Current25.2 A
Sound Power75 dBA
Oil TypePOE
| Specification | copeland compressor ZR81KCE-TF5 |
| Capacity(Btu/hr) | 19900 |
| Power(W) | 5800 |
| Discharge(m³/h) | 19.24 |
| oil recharge(L/L) | 1.66 |
| Height(mm) | 462 |
| Weight | 40kg |
| Refrigerant | R22/R407/R134A |
Features
Copeland scroll axial and radial compliance for superior reliability and efficiency
Wide scroll line-up for R407C and R134a
Low TEWI (Total Equivalent Warming Impact)
Low sound and vibration level
Low oil circulation rate
Copeland qualified tandem and trio configurations for superior seasonal efficiency (ESEER)
Notes:
(1) Nominal dimensions are shown. All tolerances are ± 1.50 [0.060] unless otherwise specifed.
(2) Due to the accumulated assembly tolerances, the top of the compressor, terminal box, suction and discharge ftting vary from the mounting feet by ± 3.0 [0.12]
(3) Terminal box option is shown.
(4) Stub tube fttings are shown.
(5) Linear measurements in [ ] are inch conversions. Third Angle Projection
