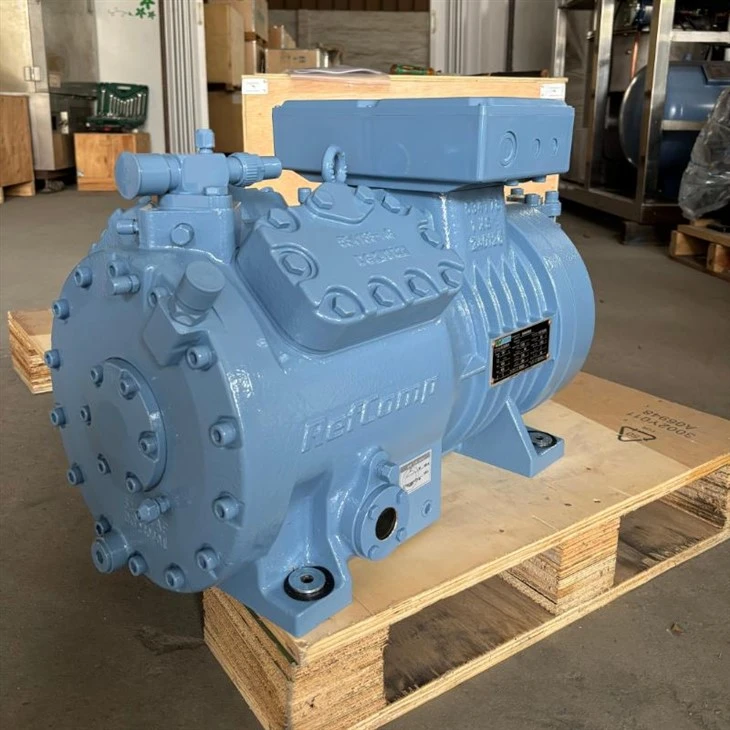

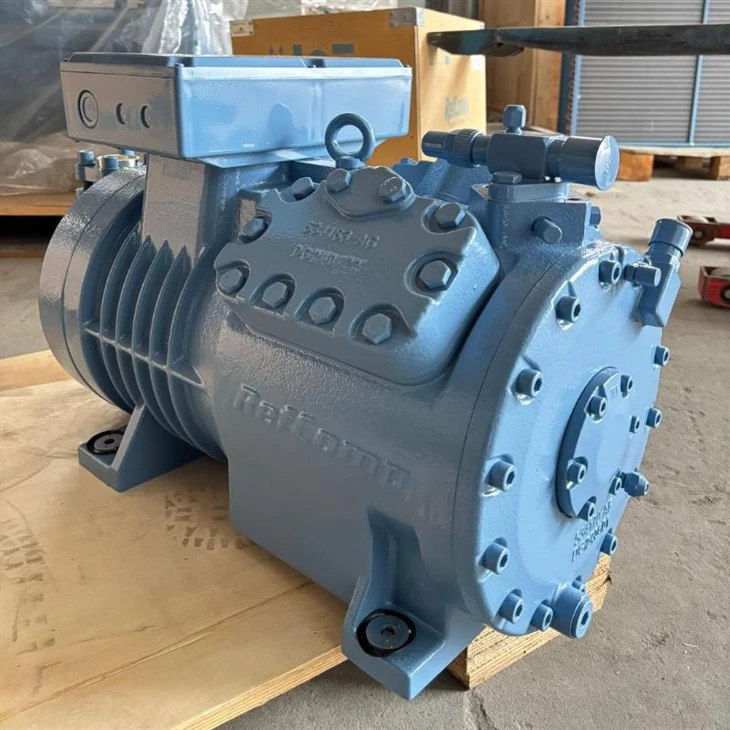

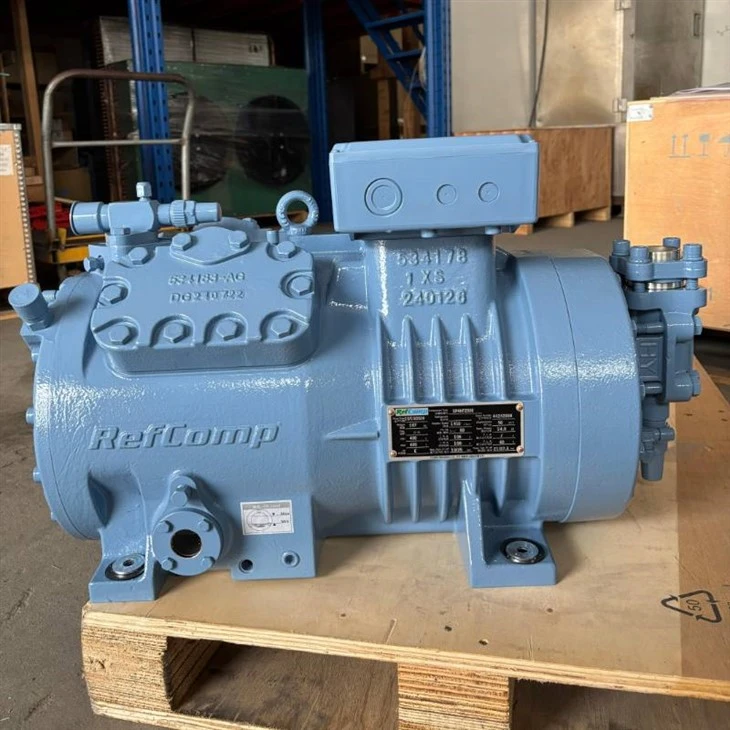

Refcomp SP4HF1500 SP4HF150E Reciprocating Semi Hermetic Compressor
Brand:Refcomp
Model number:SP4HF1500,SP4HF150E
Nominal Power(Hp/kW):15/11.2
Refrigerant:R22,R407C,R134a,R404A,R507
Exhaust volume 50/60Hz(m³/hr):49/58.8
Cyinders:4
Description
Suction Gas Cooling & Pressure Safety
The SP4HF1500 reciprocating semi hermetic compressor incorporates an internal spatial design that channels suction gas directly across the motor before it reaches the compression chambers. This internal gas flow maintains stable motor operating temperatures under continuous working pressures up to 28 bar.
Balanced 4-Cylinder Drive & Step Regulation
Featuring a counterweighted crankshaft, this reciprocating semi hermetic compressor balances mechanical loads during operation to lower structural vibration and gas pulsation. Integrated capacity control steps allow systems to modulate compressor displacement according to fluctuating cooling demand.
Standard Accessories & Factory Configuration
- Suction and discharge shut-off valves
- 230V / 220W crankcase heater (50/60Hz)
- INT69B2 electronic motor protection module with PTC sensors
- IP54 sealed terminal junction box
- Oil sight glass and manual oil charging fitting
- Spring vibration isolation mounts and (DOL) terminal connection bridge
- Protective factory nitrogen charge
Applications
Commercial AC Systems
Well-suited for liquid chillers and packaged HVAC equipment requiring high-condensing performance up to 80°C with R134a.
High-Temp Cold Rooms
Designed for food preservation and commercial cold storage installations operating across medium evaporation ranges.
Industrial Process Chiller Units
Ideal for industrial process cooling installations requiring 50% and 100% capacity steps to handle variable process thermal loads.
Parameter Table
| Model | SP4HF1500,SP4HF150E | |
| Nominal Power(Hp/kW) | 15/11.2 | |
| Displacement(50/60Hz) | 49/58.8m³/hr | |
| Energy regulation | 100,50% | |
| Standard motor | 400[V]/3/50[Hz] | |
| 460[V]/3/60[Hz] P W | ||
| Lubricant Charge | 2.6L | |
| Weight | 152KG | |
Company Profile
Shenzhen Ruifujie Technology Co., Ltd.
Ruifujie is an established refrigeration hardware manufacturer and supplier with over 20 years of expertise in industrial cooling technology. Our provide scroll, reciprocating, rotary, semi-hermetic, and screw compressors. Supporting full OEM/ODM manufacturing capabilities, Ruifujie delivers reliable cooling machinery to commercial clients throughout Russia, US, UK, UAE and other overseas markets.
16+ Years Experience
Sea-near Factory
Freight Cooperation
Global Shipping
Certifications
FAQ
01.What refrigerants can be used in the SP4HF1500 semi hermetic compressor?
02.How does the step capacity regulation work on this model?
03.What electrical protection equipment is standard on the SP4HF1500?
04.What is the estimated lead time for bulk orders?
05.How are compressors packaged for international shipping?
Request a Quotation & Technical Data
Contact Ruifujie today to receive a detailed quote and datasheet within 8 hours. To help our technical team select the exact configuration for your project, please include the following details in your message:Model/Required Quantity/Refrigerant Type/Power Supply/Operating Conditions/System Application Type
