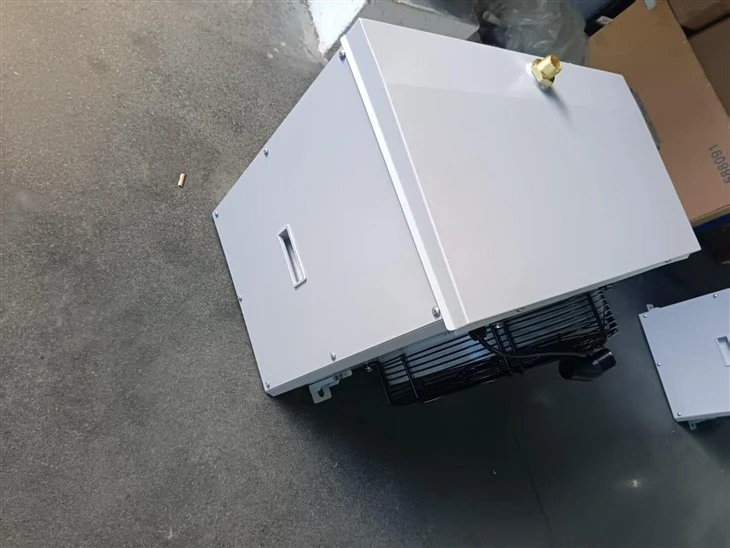

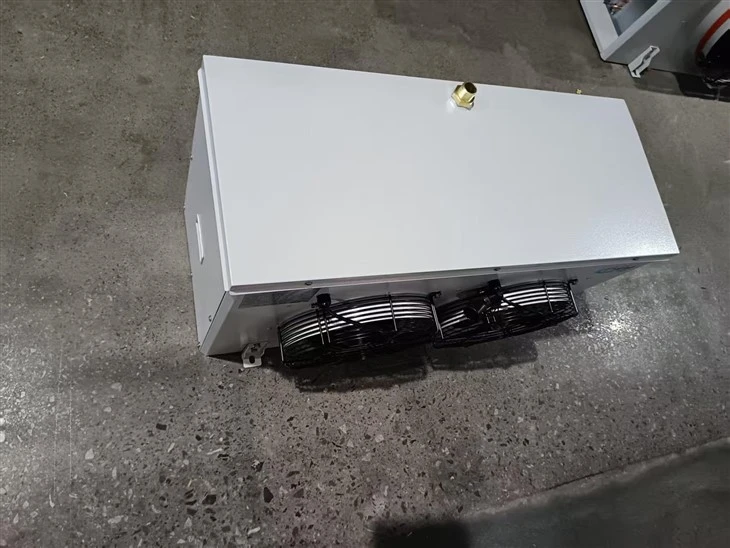

Coolroom Evaporator

The D7.7E4.5 coolroom evaporator is a high-efficiency, ceiling-mounted industrial air cooler specifically developed for medium and high-temperature storage projects maintaining a stable 0°C warehouse baseline. Delivering a nominal cooling capacity of 7.7 kW while maintaining a structurally minimized footprint, this heavy-duty coolroom evaporator is the perfect thermal selection for high-density food warehouses, supermarket cold storage bays, and logistics terminals where saving structural indoor space is highly critical.

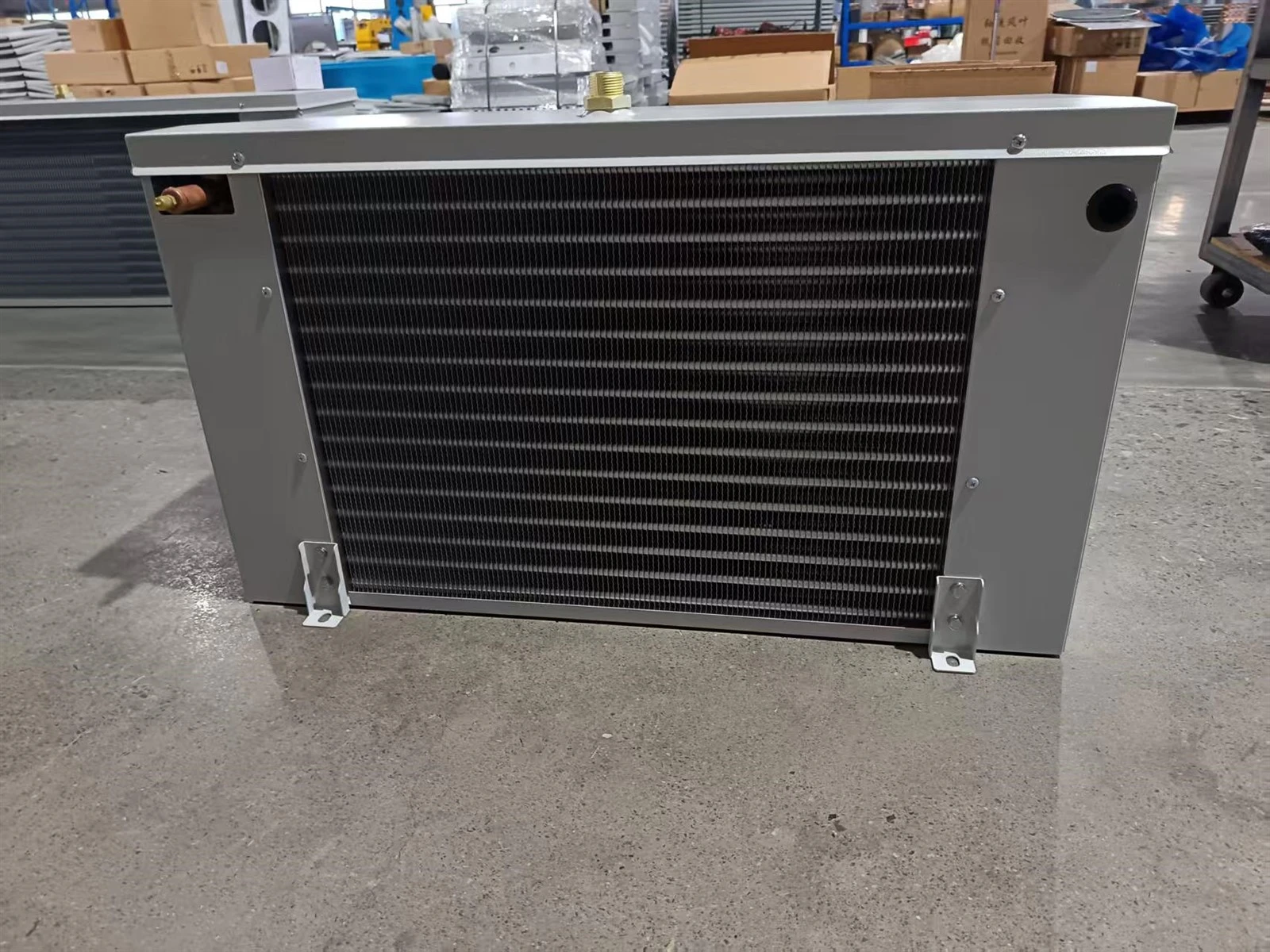

Standard commercial walk-in units often suffer from high operational noise, bulky size configurations, and sluggish heat exchange cycles that lead to localized temperature drift. The D7.7E4.5 coolroom evaporator successfully resolves these challenges by integrating internally grooved copper tubes with advanced louvered window fins featuring dual sine wave patterns and wavy edges. This layout maximizes the internal thermodynamic surface area, reduces oil film resistance coefficients, and creates a highly balanced forced air path across the space.

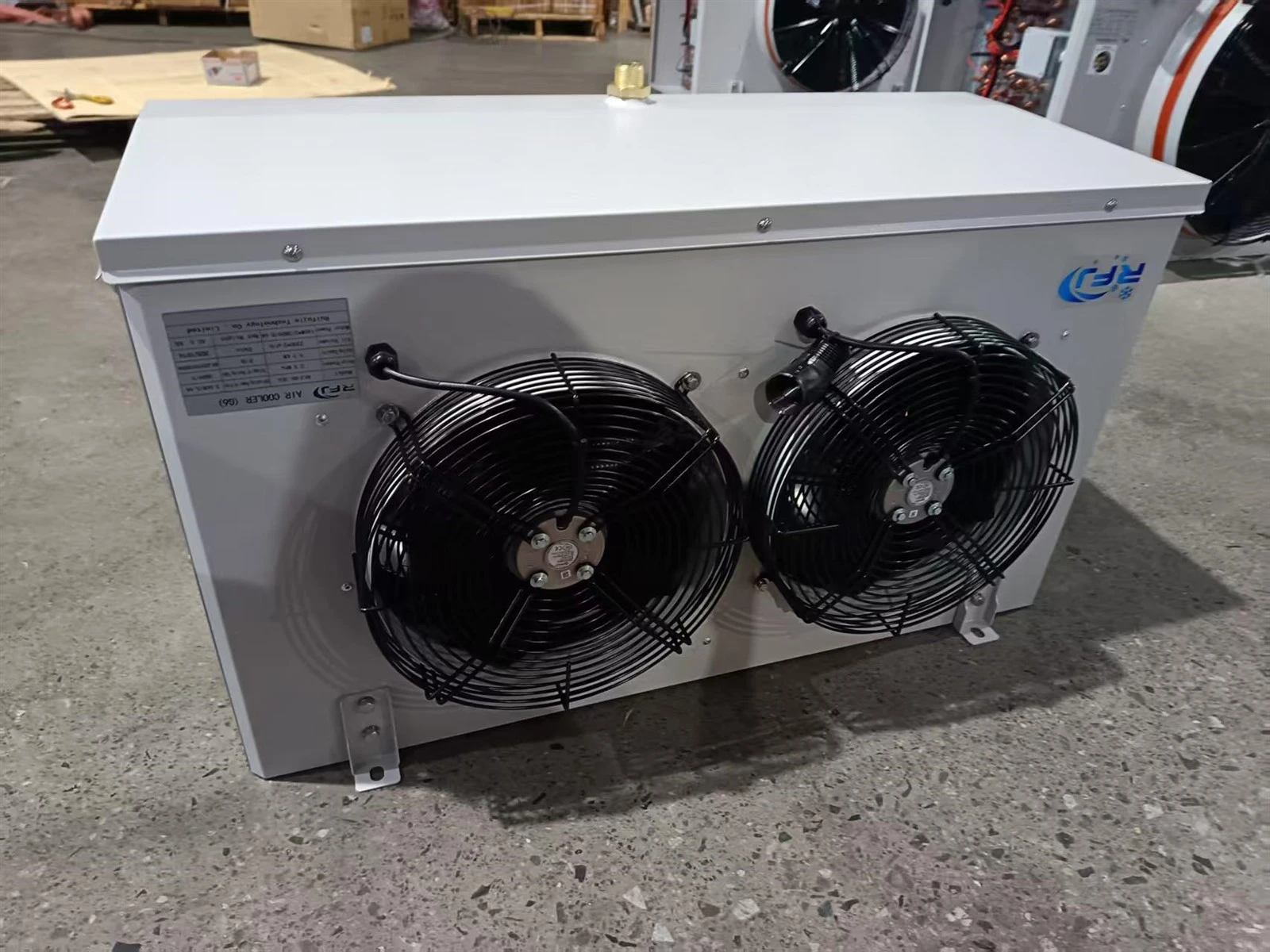

Built to endure high-humidity environments, this model is constructed from premium steel plates treated with an anti-corrosive powder-coated surface. It features dual low-temperature external rotor motors running at 145 W each with an IP55 protection rating and Class F insulation to ensure quiet, long-term operation from -40°C to 60°C. For flexible system integration, the assembly supports various refrigerants such as R404A, R507A, R23, R134a, and R22, with every unit successfully passing a 2.8 MPa clean air pressure test before delivery.
