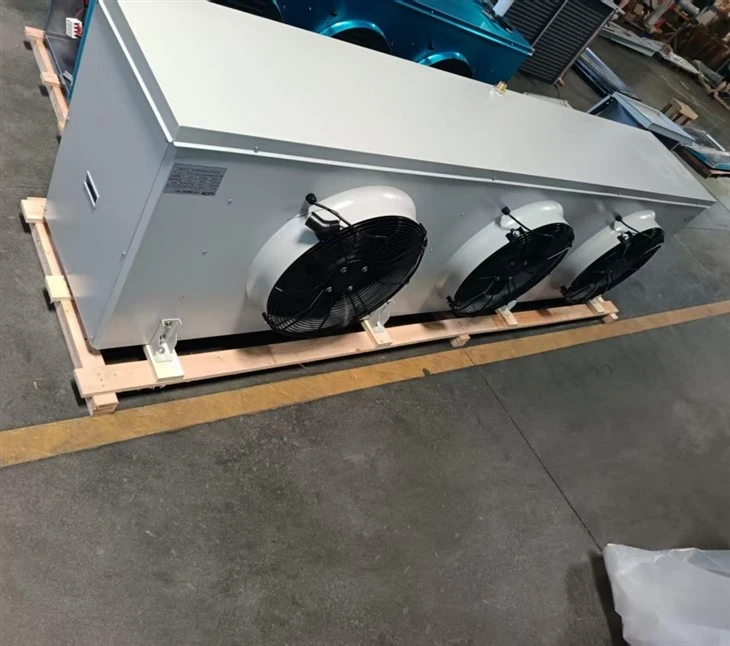

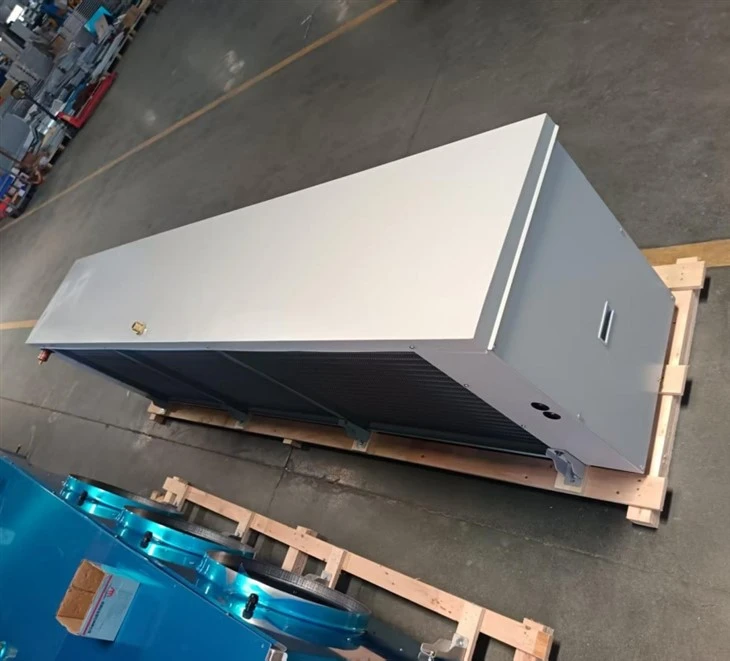

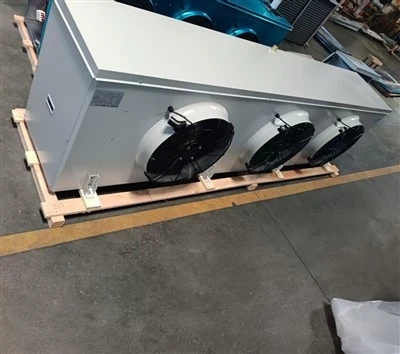

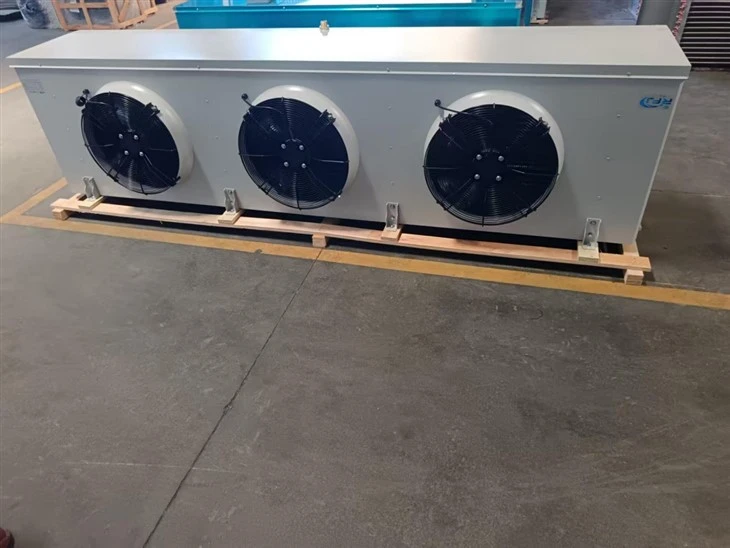

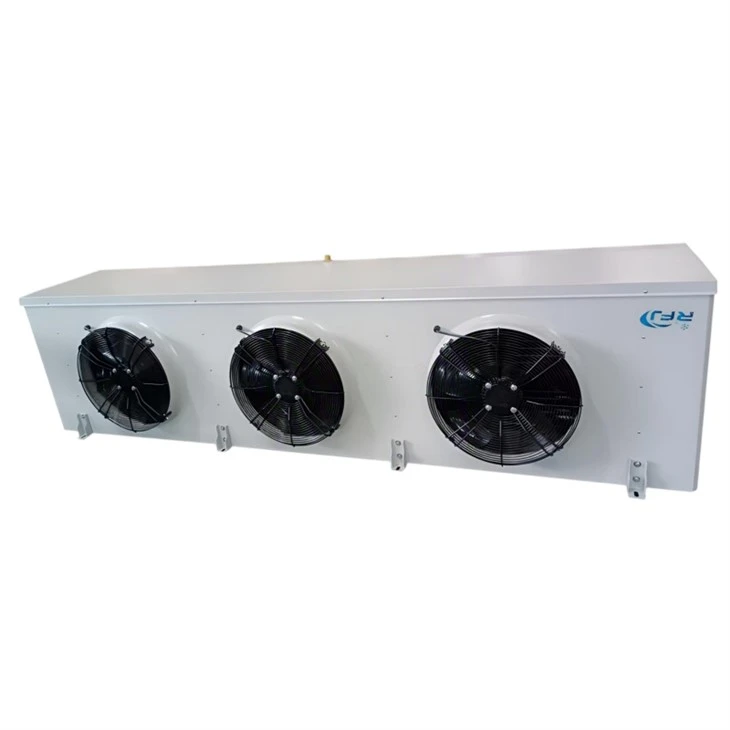

Evaporator For Cold
Brand:RFJ
Model number:RFJ-D11.8E9
Refrigerating Capacity:11.8KW
Air Volume:3x7000m³/h
Fan Voltage:380V
Quantity of Fans：3
Description
High-Capacity Deep-Freeze Engineering
The D11.8E9 ceiling-mounted low-temperature industrial unit cooler delivers an ultra-powerful 11.8kW cooling capacity specifically engineered for deep-freezing warehouses operating down to -35°C. This high-capacity evaporator for cold rooms ensures uniform thermal regulation across expansive storage layouts, eliminating hot zones while maximizing usable floor space for commercial logistics operations.
Advanced Anti-Frosting Airflow Optimization
Large industrial freezing facilities constantly face severe cooling drops and restricted airflow caused by rapid frost building on traditional heat exchange coils. The advanced D11.8E9 evaporator for cold storage systems directly counters this operational issue by deploying an extra-wide 3FPI (9mm) fin spacing and louvered sine-wave geometric fin profiles, significantly extending continuous processing intervals between mandatory defrost cycles.
Rugged Industrial Construction and Safety Standards
Engineered for extreme durability in demanding frozen environments, this heavy-duty evaporator for cold processing plants features premium internally grooved copper tubes that maximize inside contact surface areas while keeping a low oil film coefficient. The structural frame integrates triple 500mm external rotor fans generating a massive 21,000 m³/h air volume, F-class insulation, and passes a strict 2.8MPa clean air pressure test to guarantee leak-free industrial safety.
Parameter Table
| Model | D11.8E9 |
| Cooling Capacity | 11.8 kW |
| Air Volume | 3x7000 m³/h |
| Motor Power | 3x414 W |
| Fan Voltage | 380 V |
| Liquid Inlet / Gas Return Diameter | 22 mm / 35 mm |
| Electric Defrost Power | 12.6 kW |
