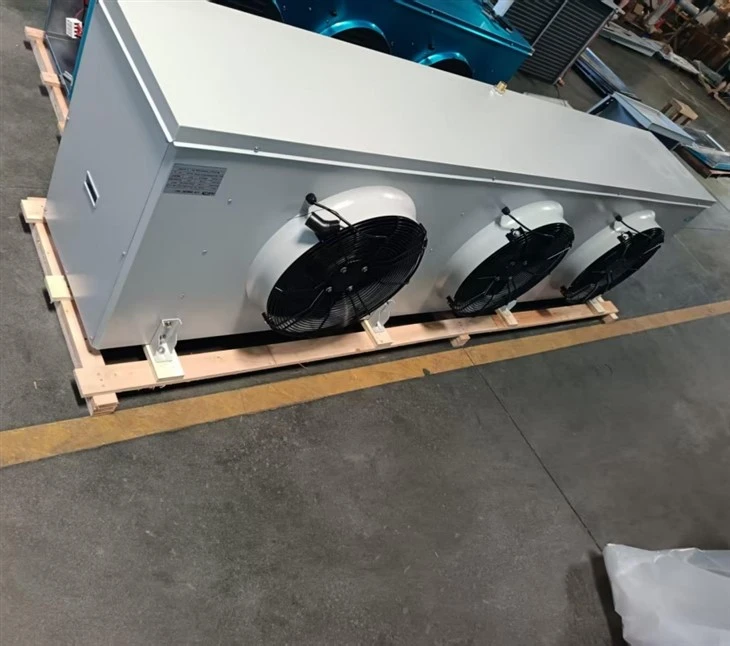

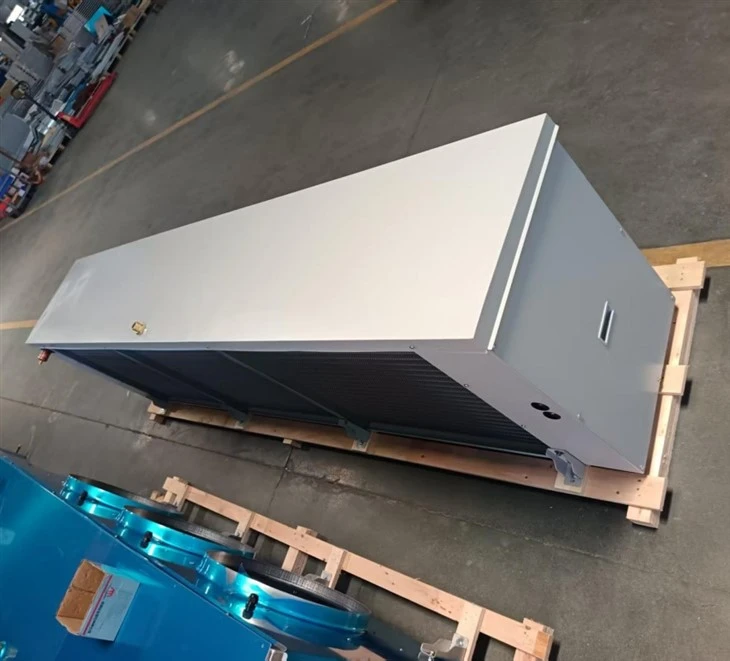

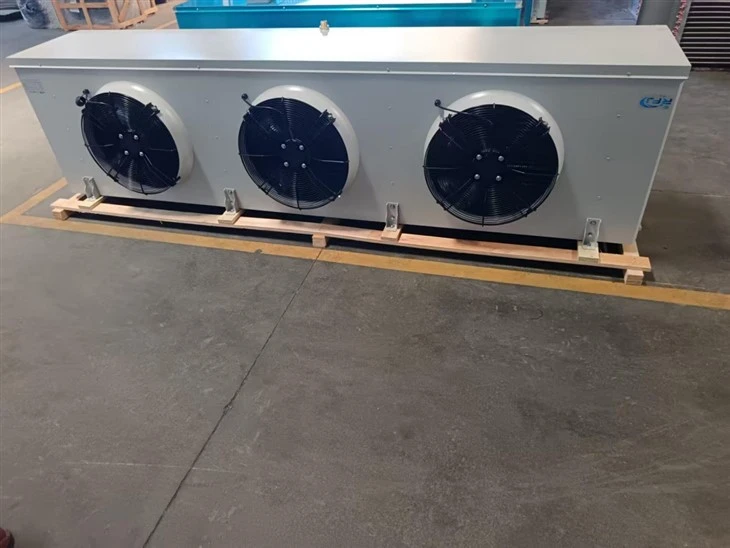

Industrial Evaporators
Brand:RFJ
Model number:RFJ-D10.8E9
Refrigerating Capacity:10.8KW
Air Volume:3x5300m³/h
Fan Voltage:380V
Quantity of Fans：3
Description
High-Capacity Deep-Freeze Thermal Engineering
The D10.8E9 ceiling-mounted heavy-duty cooling system delivers a commanding 10.8kW cooling capacity explicitly engineered for commercial deep-freeze rooms operating down to -35°C. These high-output industrial evaporators solve spatial bottlenecks in large-scale cold storage facilities by utilizing an overhead layout, maximizing net usable inventory space while ensuring rapid heat extraction.
Advanced Anti-Frosting Airflow Optimization
Severe frost accumulation and restricted air distribution frequently plague flash-freezing plants, leading to massive efficiency losses. The D10.8E9 high-efficiency industrial evaporators eliminate these common operational vulnerabilities by combining a wide 3FPI (9mm) fin spacing with double sine wave corrugated fin profiles, which significantly delay frost bridging and reduce automatic shutdown cycles.
Rugged Industrial Construction and Safety Standards
Built for unrelenting runtime in harsh processing zones, these durable industrial evaporators feature advanced inner grooved copper tubes arranged in a staggered configuration to accelerate thermodynamic transfer. The robust structural assembly incorporates triple 450mm external rotor fans rated at IP55, a powder-coated anti-corrosive galvanized steel casing, and passes a mandatory 2.8MPa clean air pressure test to guarantee absolute operational safety.
Parameter Table
| Model | D10.8E9 |
| Cooling Capacity | 10.8 kW |
| Air Volume | 3x5300 m³/h |
| Motor Power | 3x250 W |
| Fan Voltage | 380 V |
| Liquid Inlet / Gas Return Diameter | 22 mm / 35 mm |
| Electric Defrost Power | 12.1 kW |
Company Profile
Shenzhen Ruifujie Technology Co., Ltd.
Ruifujie operates as a world-class manufacturing pioneer with over 20 years of expertise in the commercial refrigeration industry. Our large-scale modern complex manufactures a diverse lineup of high-efficiency scroll, piston, rotary, semi-hermetic, and screw compressors, cold storage rooms, fast-freezing tunnels, and industrial ice plants. Equipped with advanced engineering lines, we deliver flexible OEM/ODM customization services tailored to specific global projects. Today, our highly durable cooling hardware is exported to prominent international destinations including the US, Russia, the UK, the UAE, and Saudi Arabia. Combining extensive technical R&D with optimal cost performance, Ruifujie develops reliable long-term partnerships highly valued by overseas B2B procurement professionals.
16+ Years Experience
Sea-near Factory
Freight Cooperation
Global Shipping
Certifications
FAQ
01.What specific refrigeration challenges does the D10.8E9 model address in deep-freeze environments?
02.How do the triple external rotor fans optimize air distribution inside the cold room?
03.Which standard refrigerants can be deployed within the D10.8E9 coil framework?
04.Can you provide custom branding and localized language options for large engineering shipments?
05.What is the turnaround time for receiving a formal commercial quotation?
Engineering Project Quotation
Backed by Ruifujie's modern production infrastructure and expert thermodynamic team, we offer tailored manufacturing adaptations for major distribution facilities utilizing our heavy-duty industrial evaporators. Our division delivers comprehensive system calculations and structural adjustments to seamlessly fit your facility layouts and compressor specifications. Please forward your exact project parameters, required procurement quantities, or detailed demand details today, and our engineers will provide an optimized proposal within hours.
