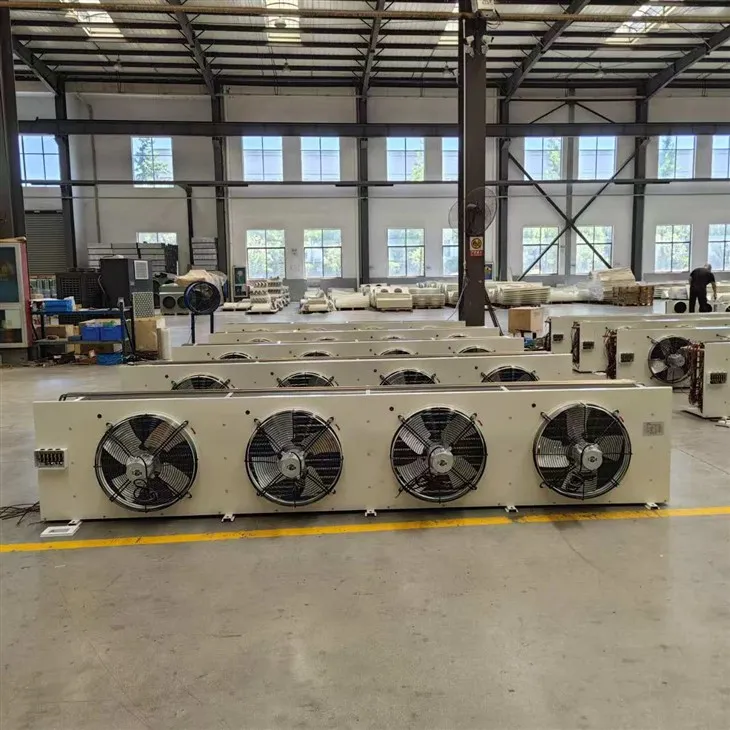

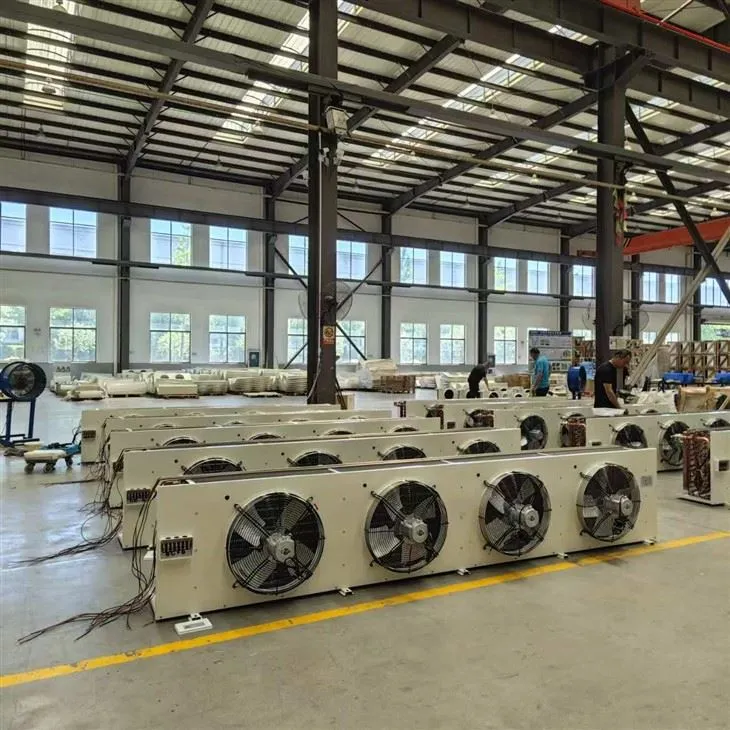

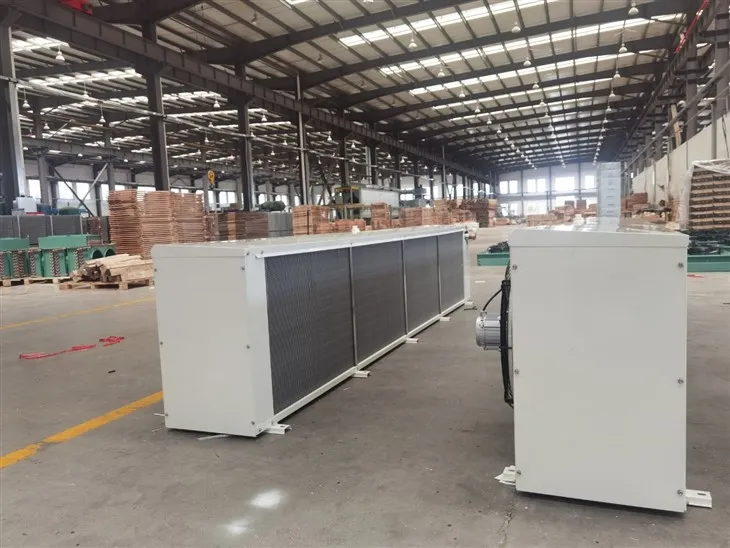

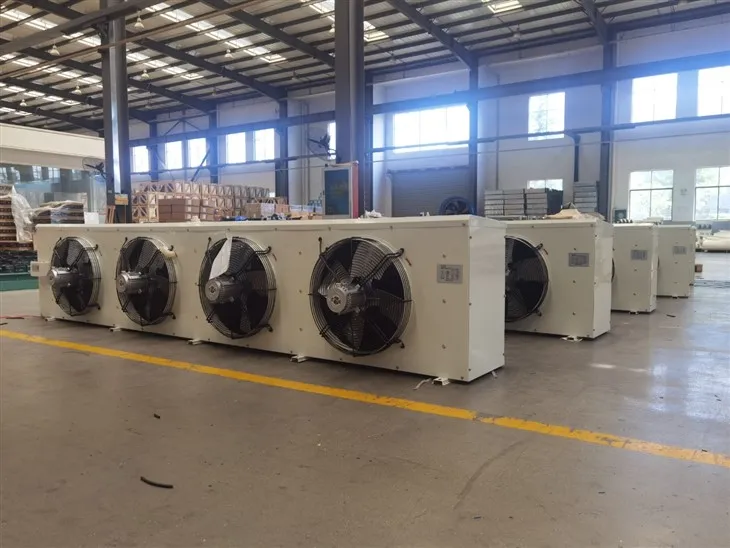

RFJ Cost-effective High-output 37.2KW DD200 Air Cooler For 200㎡ Cold Storage

RFJ Cost-effective High-output 37.2KW DD200 Air Cooler for 200㎡ Cold Storage



Product Detail

---



Product Advantage

---

1. 37200W rated cooling capacity is engineered to satisfy 200㎡ bulk cold storage for fruits, meats and frozen food centralized preservation.

2. Four 500mm diameter fan modules generate 24000m³/H total airflow to realize uniform temperature distribution within full warehouse space at 15m air throw distance.

3. Reinforced electric defrost configuration with 11000W fin heating tube & 4800W drain pan heater rapidly eliminates thick frost layer without interrupting regular refrigeration operation.

4. Custom φ25/φ50 inlet-outlet refrigerant pipeline improves fluid circulation efficiency and matches mainstream R22, R404A and other common industrial refrigerants.

5. 380V standardized fan power design reduces spare parts replacement frequency and controls long-period running maintenance expenditure for end users.



Technical Data

---

Parameter Item	Specification
Model	DD-37.2/200
Nominal Refrigeration Capacity	37200 W
Nominal Applicable Cold Storage Area	200 m²
Tube Volume	32.2 L
Refrigerant Inlet & Outlet Pipe Size	φ25/φ50 mm
Fan Quantity	4 pcs
Single Fan Diameter	500 mm
Fan Working Voltage	380 V
Single Fan Rated Power	414 W
Total Air Volume	24000 m³/H
Air Supply Blowing Range	15 m
Fin Electric Defrost Power	11000 W
Water Drip Tray Defrost Power	4800 W

Company Profile

---

Shenzhen Ruifujie Technology Co., Ltd. has more than 20 years of industry experience, specializing in high-quality refrigeration products and refrigeration compressors. Our main products include scroll, piston, rotor, semi-hermetic and screw compressors, which are sold to Jaipur, New Delhi, the USA, UK, Russia and other global regions. We have rich experience in ice machines and cold storage equipment, offer customized OEM/ODM services, and are highly recognized by global customers for premium refrigeration compressors and reasonable prices.



Package and Shipping

---

Supply Ability	1000000 pieces/year,MOQ is usually one piece,
Shipping Time	Sample order in stock within 3 days,Bulk order generally 10-15 working days after receiving deposit
Shipping Method	Support by sea,by air,by express(DHL,FedEx,UPS...)
Payment Terms	TT/Western Union
	30% Advance Payment,70% Final Payment
Shipping Port	Ningbo Port, Shanghai Port, Shenzhen Port



FAQ

---

Q: Does compressor come pre-filled with refrigerant?

A: All compressors are empty without refrigerant. Refrigerant charging should be finished by local refrigeration installer after on-site installation.



Q: What is your minimum order quantity?

A: If we have the products in stock, it will be no MOQ. If we need to produce,we candiscuss the MOQ according to customer's exact situation



Q3: Is sample shipping cost negotiable?

A: Express cost follows courier official rate



Q: What services and after-sales support do you provide?

A: We guarantee product quality with a 1-year warranty. Our team ensures reliable support throughout and after your purchase.



Q: Can you supply spare parts separately (motor,terminal,crankcase heater)?

A: We supply matching spare parts for our compressors, spare parts price and MOQ need separate quotation.
