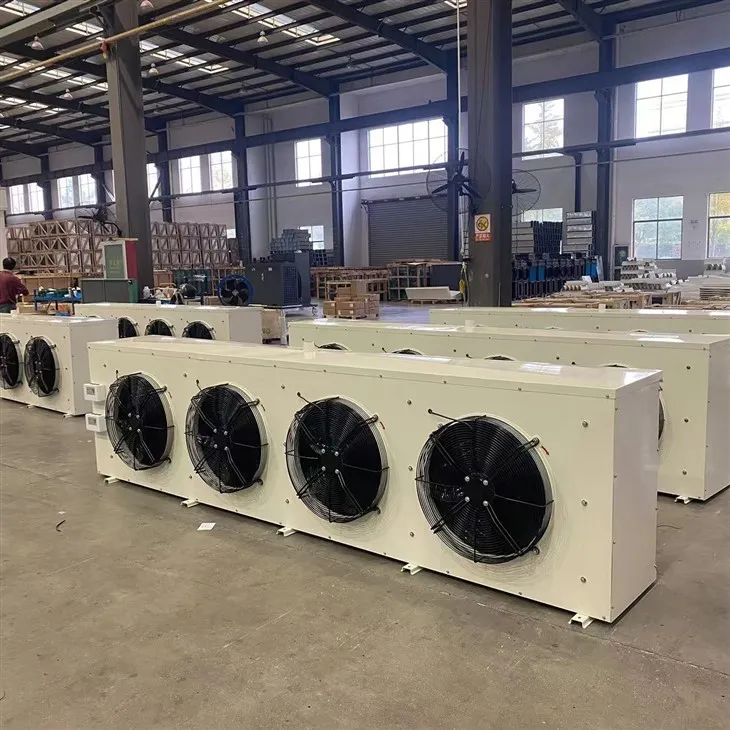

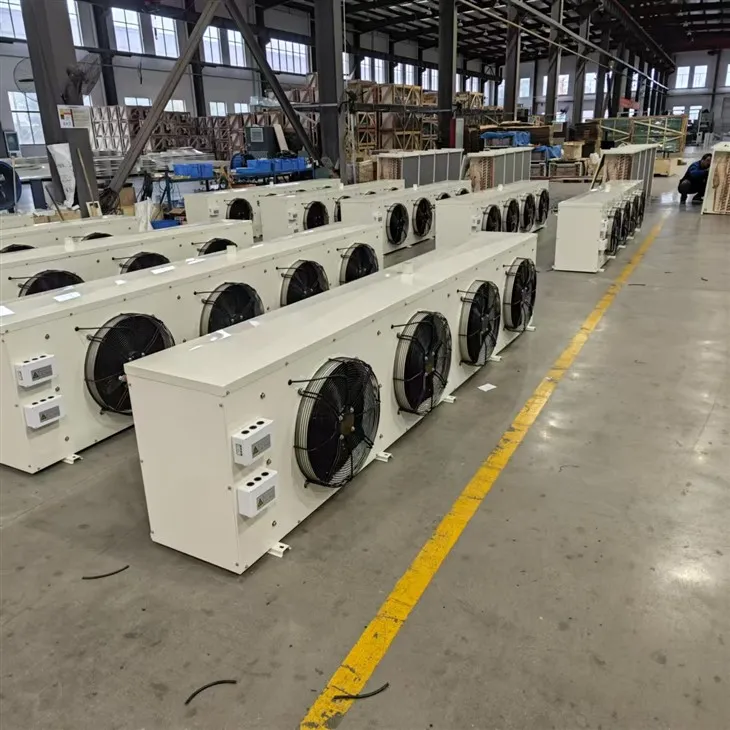

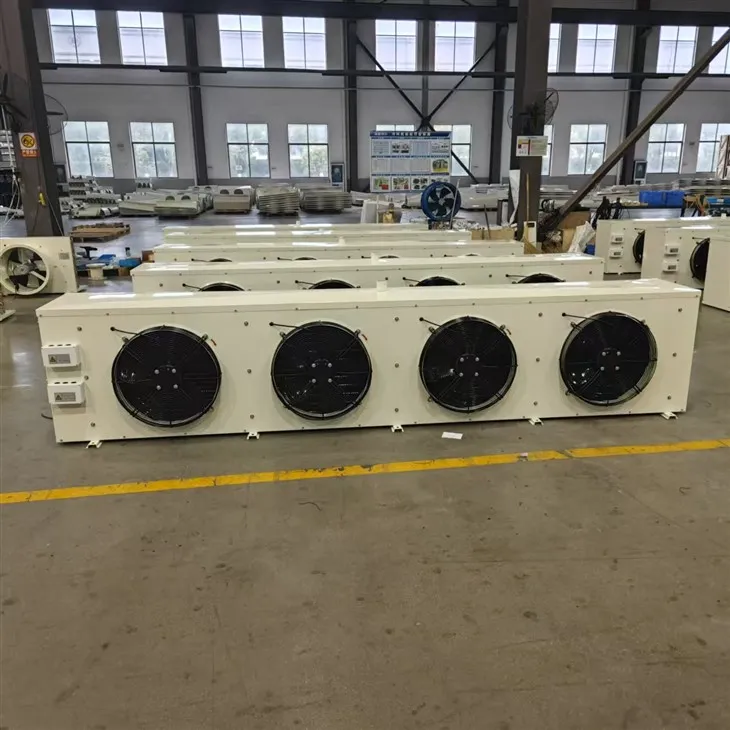

RFJ Fast-defrost Large Airflow DD160 Air Cooler Evaporator

RFJ Fast-defrost Large Airflow DD-29.8/160 Air Cooler



Product Detail

---



Product Advantage

---

1. 29800W rated cooling output is engineered to cover 160㎡ full-space refrigeration for multi-zone cold warehouse layout.

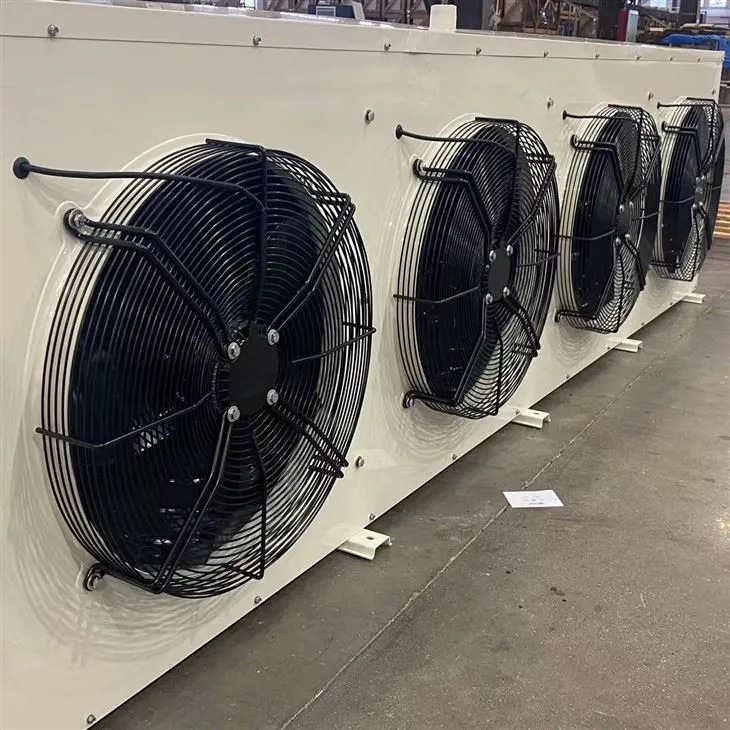

2. Quadruple 500mm diameter fans optimize internal air duct layout to deliver 24000m³/H airflow with consistent 15m far-reaching air throw.

3. Independent dual-circuit electric defrost setup with 9600W fin heater & 4800W drain pan heater eliminates accumulated frost and residual ponding efficiently.

4. Custom φ25/φ48 inlet-outlet refrigerant piping cuts fluid resistance and fits mainstream refrigerant varieties for diversified refrigeration systems.

5. 380V industrial-grade fan motor features robust voltage tolerance to sustain nonstop round-the-clock operation under fluctuating on-site power conditions.



Technical Data

---

Parameter Item	Specification
Model	DD-29.8/160
Nominal Refrigeration Capacity	29800 W
Nominal Applicable Cold Storage Area	160 m²
Tube Volume	25.8 L
Refrigerant Inlet & Outlet Pipe Size	φ25/φ48 mm
Fan Quantity	4 pcs
Single Fan Diameter	500 mm
Fan Working Voltage	380 V
Single Fan Rated Power	414 W
Total Air Volume	24000 m³/H
Air Supply Blowing Range	15 m
Fin Electric Defrost Power	9600 W
Water Drip Tray Defrost Power	4800 W

Company Profile

---

With over 20 years of experience, Shenzhen Ruifujie Technology Co., Ltd. is a large modern enterprise focusing on R&D, production and sales of refrigeration products. We specialize in developing and manufacturing scroll, piston, rotor, semi-hermetic and screw refrigeration compressors, which are exported worldwide. Endowed with strong technical strength and rich experience in cold storage, freezing, quick-freezing equipment and ice machines, we provide professional OEM/ODM refrigeration services and have stable global cooperative partnerships, winning high praise for high-quality refrigeration compressors and competitive prices.



Package and Shipping

---

Supply Ability	1000000 pieces/year,MOQ is usually one piece,
Shipping Time	Sample order in stock within 3 days,Bulk order generally 10-15 working days after receiving deposit
Shipping Method	Support by sea,by air,by express(DHL,FedEx,UPS...)
Payment Terms	TT/Western Union
	30% Advance Payment,70% Final Payment
Shipping Port	Ningbo Port, Shanghai Port, Shenzhen Port
