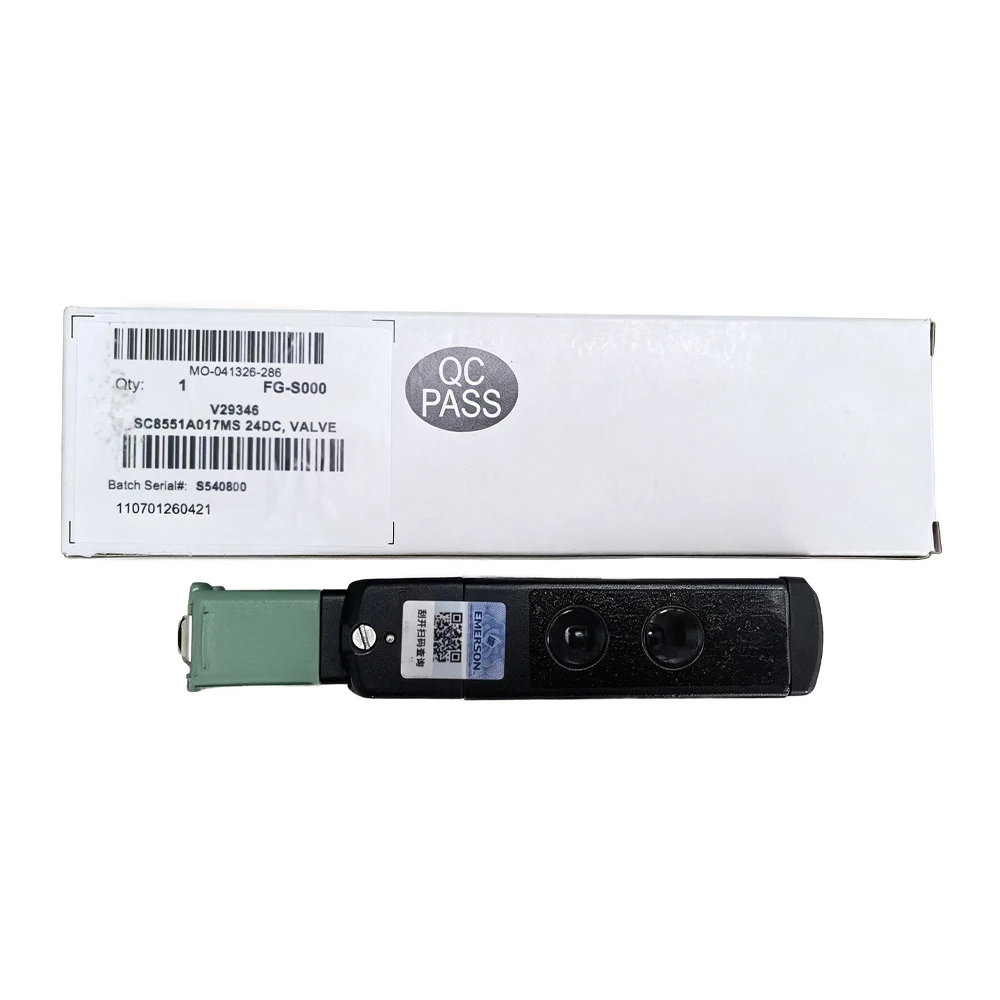

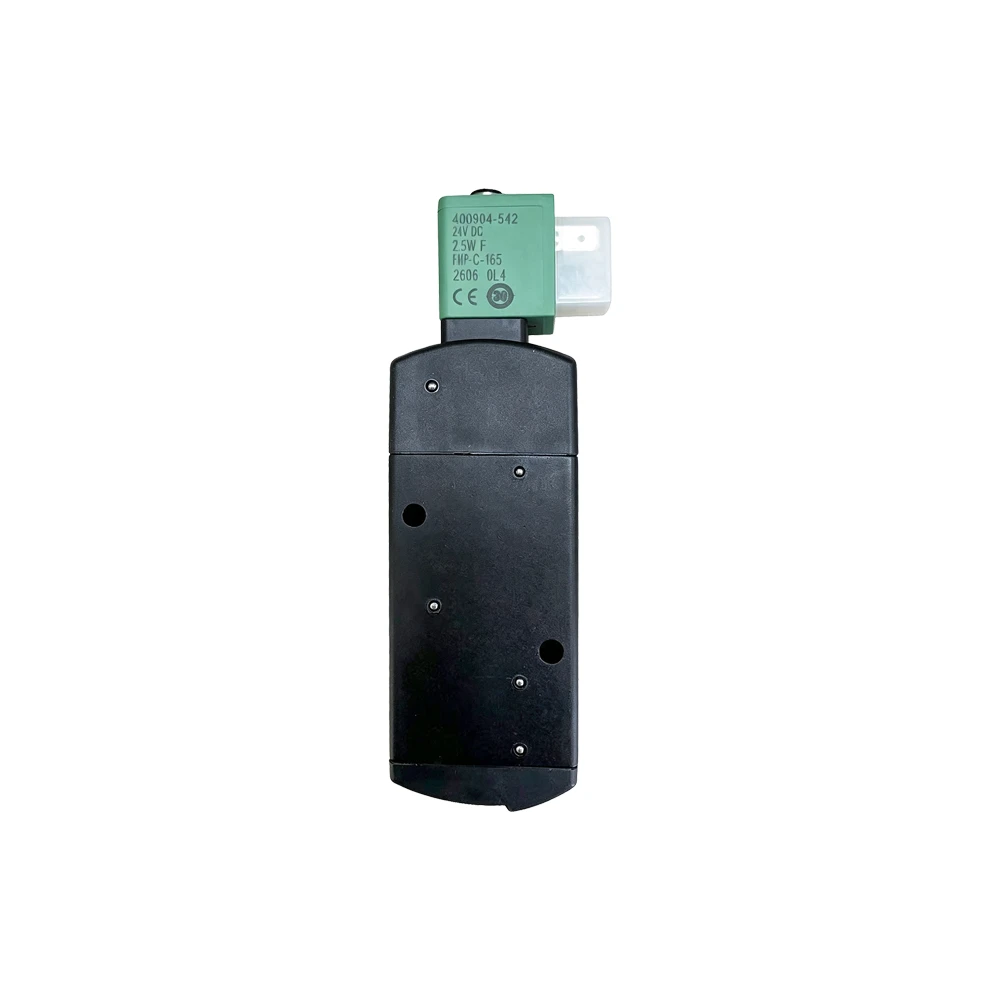

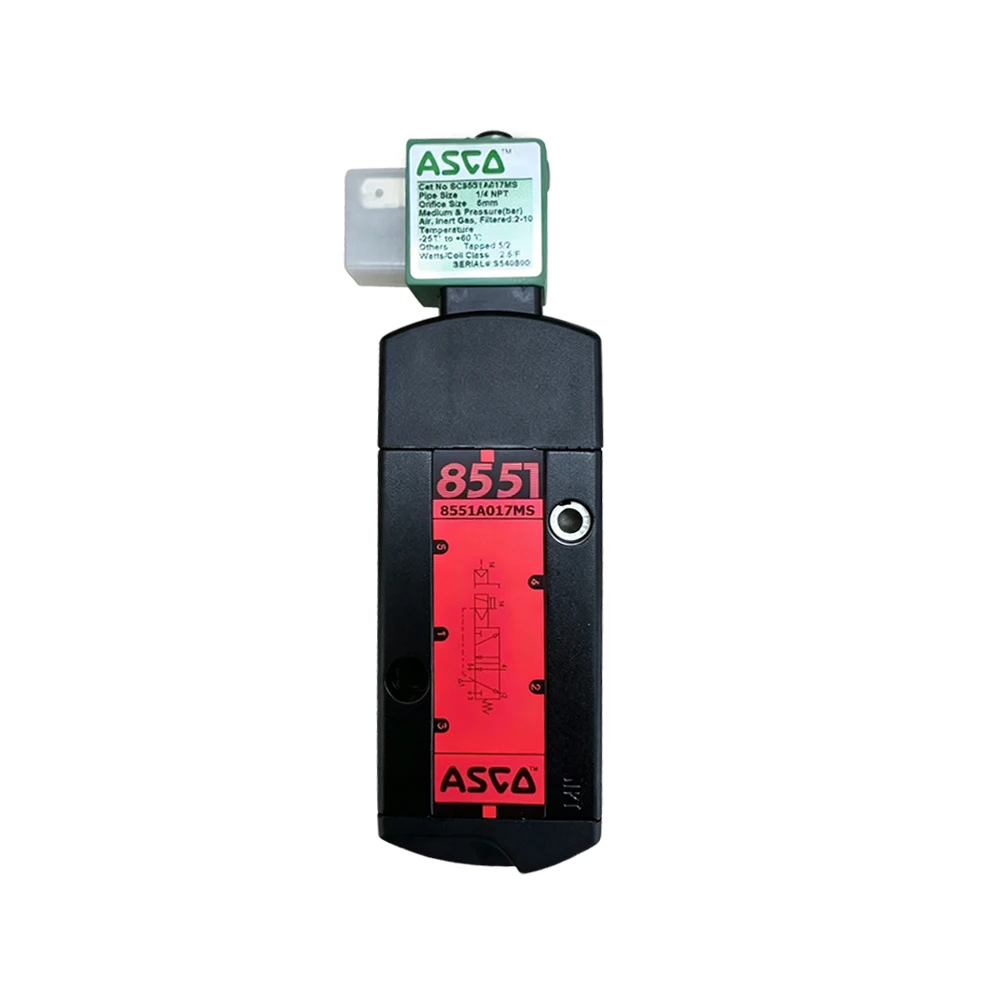

SC8551A017MSDC 24DC Compact Spool DC Solenoid Valve
Model:SC8551A017MSDC 24DC
Body Material:Aluminum
Flow(Cv)/Flow(Kv):0.86 / 0.74
Function:4 way
Pipe/Port Type & Size:NPT 1/4
Valve Actuation:Solenoid
Description
High-Reliability Spool Valve Technology
The SC8551A017MSDC 24DC is a compact DC Solenoid Valve belonging to the ASCO 551 series, specifically engineered for controlling air or inert gas in challenging process environments. Featuring a unique design that combines hard T-seals with flexible O-rings, this DC Solenoid Valve provides bubble-tight shutoff, high dirt resistance, and multi-million cycle operational reliability.
Robust Design for Harsh Environments
Pipable Exhaust Ports: All exhaust ports are fully pipable, delivering superior protection against environmental contaminants.
Flexible Construction & Mounting: Mountable in any position with a standard manual operator for easy manual override and maintenance.
Versatile Enclosure Options: Available with DIN, watertight, and explosionproof solenoids in single or dual solenoid constructions.
Corrosion-Resistant Bodies: Constructed in anodized aluminum, brass, or stainless steel bodies featuring 1/4-inch NPT or BSP threaded port connections.
Broad Industrial Applications
As a versatile DC Solenoid Valve, this model is well-suited for demanding conditions found in chemical processing, refining, food & beverage production, and life science processing.
Parameter Table
| Model | SC8551A017MS 24DC | |
| Media | Air, Inert Gas | |
| Product Weight | 1.28 lbs | |
| Coil Class | F | |
| Coil Number | 400127-042 | |
| Min to Max Ambient Temperature | 5 - 104 °F | |
| Min to Max Fluid Temperature | 5 - 150 °F | |
| Orifice Size | 1/4 in | |
| Voltage | 24 Volts DC | |
| Watt Rating | 3 W | |
Company Profile
Shenzhen Ruifujie Technology Co., Ltd.
Ruifujie is a modern, large-scale enterprise with over 20 years of experience in the industrial and commercial refrigeration and climate control industry. We specialize in scroll, reciprocating, rotary, semi-hermetic, and screw compressors, alongside cold room units, quick-freezing equipment, ice machines, and control accessories. Providing full OEM/ODM customization services, Ruifujie supplies high-efficiency products to B2B clients across global markets, including Russia, the United States, the United Kingdom, the UAE, and Saudi Arabia.
16+ Years Experience
Sea-near Factory
Freight Cooperation
Global Shipping
Certifications
FAQ
01.What media is compatible with the SC8551A017MSDC 24DC valve?
02.How does the sealing design ensure long service life?
03.Can this valve be used in hazardous or outdoor environments?
04.What is your MOQ and standard delivery time for valve orders?
05.What trade terms and payment methods do you support?
Request Pricing & Technical Assistance
Contact our engineering team to select the right control components and receive competitive B2B quotes for industrial solenoid valves. We provide formal quotations within 8 hours of receiving your request. Please specify your target model, quantity, operating voltage, media, and project requirements in your message.
