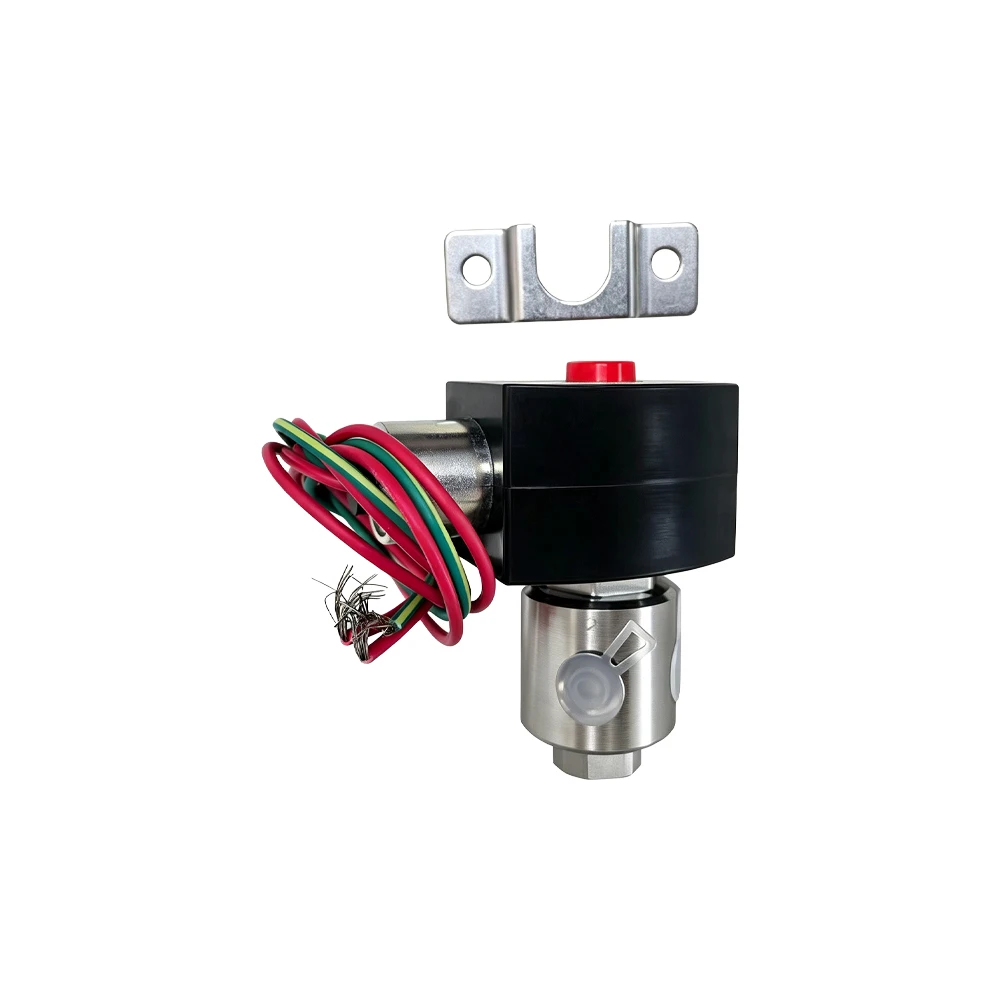

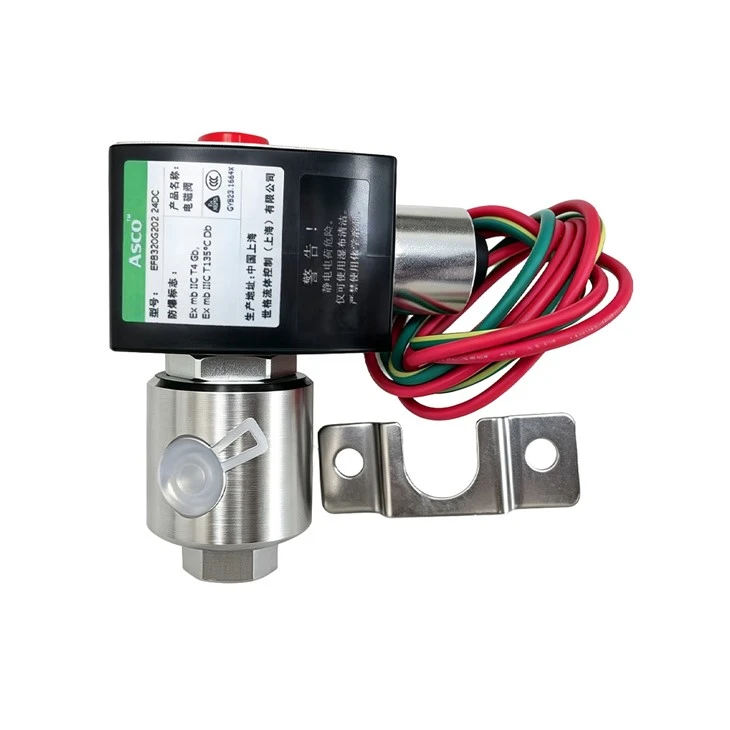

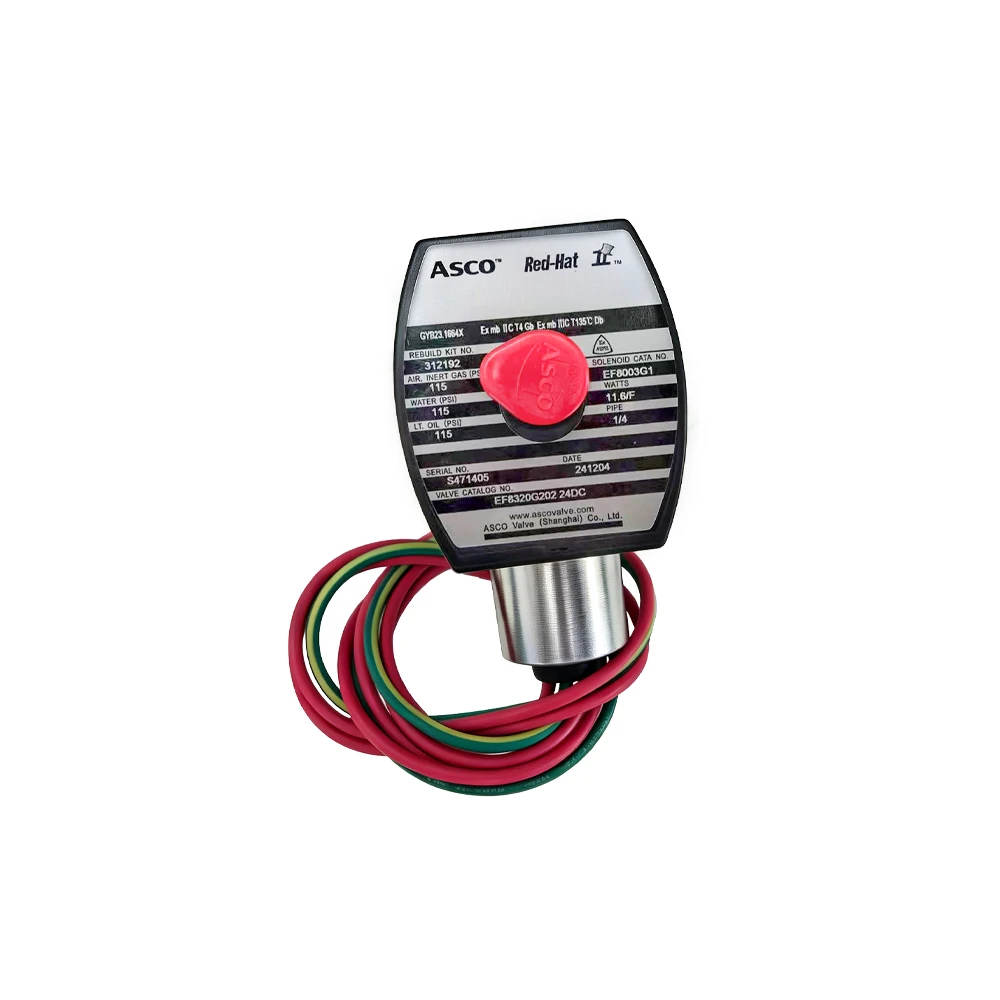

EF8320G202 24DC Direct Acting Solenoid Valve
Model:EF8320G202 24DC
Body Material:Stainless Steel
Flow(Cv)/Flow(Kv):0.12/0.10
Function:3 way-3/2 Normally Closed
Pipe/Port Type & Size:NPT 1/4
Valve Actuation:Solenoid - Direct Acting
Description
Direct-Acting Performance & Flexible Installation
The EF8320G202 24DC belongs to the ASCO 320-s Series general-service solenoid valves designed for reliable direct-acting operation without requiring a minimum operating pressure differential. Engineered with all NPT connections located directly in the valve body to enable in-line piping, this 24V DC unit can be mounted in any position to simplify system layout and pipe integration.
Heavy-Duty Construction & Long Service Life
Extended Cycle Durability: Incorporates a specialized design that eliminates metal-to-metal contact, extending operational life up to 20 million cycles in dry air or gas applications while handling rapid cycling or continuous energization.
Certified Safety Protection: Built for low power consumption and quick shutdown of valves and actuators, carrying UL, CSA, ATEX, and IECEx certifications for challenging operating environments.
Body & Coil Options: Available in brass or stainless-steel body constructions with Class I, Division 2 coil ratings and RedHat Next-Generation low-power operation.
Broad Industrial Applications
These general-service solenoid valves are suitable for analytical and diagnostic equipment, dust collector systems, life sciences applications, press room equipment, and metal stamping processes.
Parameter Table
| Model | EF8320G202 24DC | |
| Media | Air, Inert Gas, Water, Light Oil | |
| Product Weight | 1.61 lbs | |
| Coil Class | FT | |

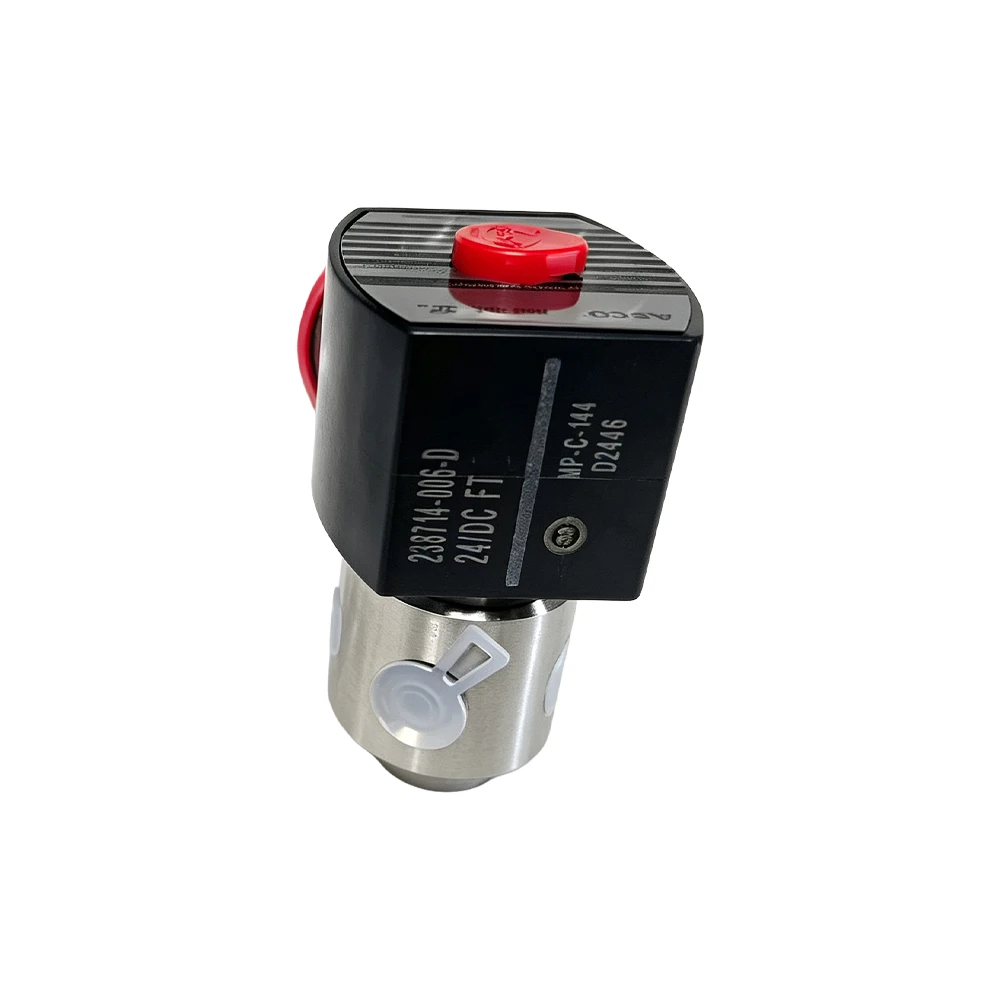

| Coil Number | 238714-006-D | |
| Min to Max Ambient Temperature | -40 - 104 °F | |
| Min to Max Fluid Temperature | -40 - 150 °F | |
| Orifice Size | 3/32 in | |
| Voltage | 24 Volts DC | |
| Watt Rating | 11.6 W | |
Company Profile
Shenzhen Ruifujie Technology Co., Ltd.
Ruifujie is a modern, large-scale enterprise with over 20 years of experience in the refrigeration and climate control industry. We specialize in scroll, reciprocating, rotary, semi-hermetic, and screw compressors, alongside cold room units, quick-freezing equipment, ice machines, and control accessories. Providing full OEM/ODM customization services, Ruifujie supplies high-efficiency products to B2B clients across global markets, including Russia, the United States, the United Kingdom, the UAE, and Saudi Arabia.
16+ Years Experience
Sea-near Factory
Freight Cooperation
Global Shipping
Certifications
FAQ
01.What is the minimum pressure differential required for the EF8320G202 24DC valve?
02.What hazardous area certifications apply to these solenoid valves?
03.What is the expected mechanical lifespan in dry gas applications?
04.What is your MOQ and delivery lead time for solenoid valve orders?
05.What trade terms and payment methods do you accept?
Request Pricing & Technical Assistance
Contact our engineering team to select the right control components and receive competitive volume pricing for industrial solenoid valves. We provide formal quotes within 8 hours of receiving your request. Please specify your target model, quantity, operating voltage, working pressure, and fluid medium in your message.
