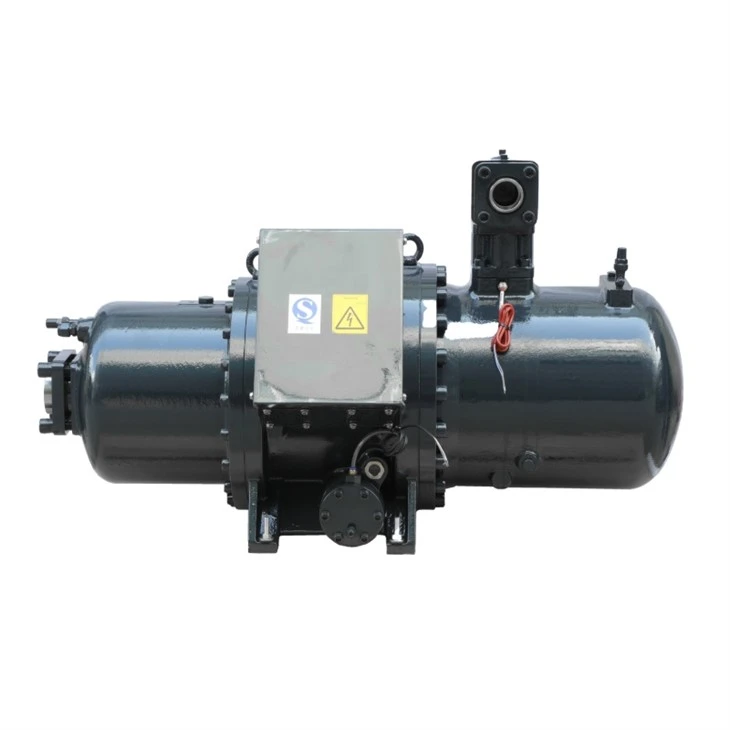

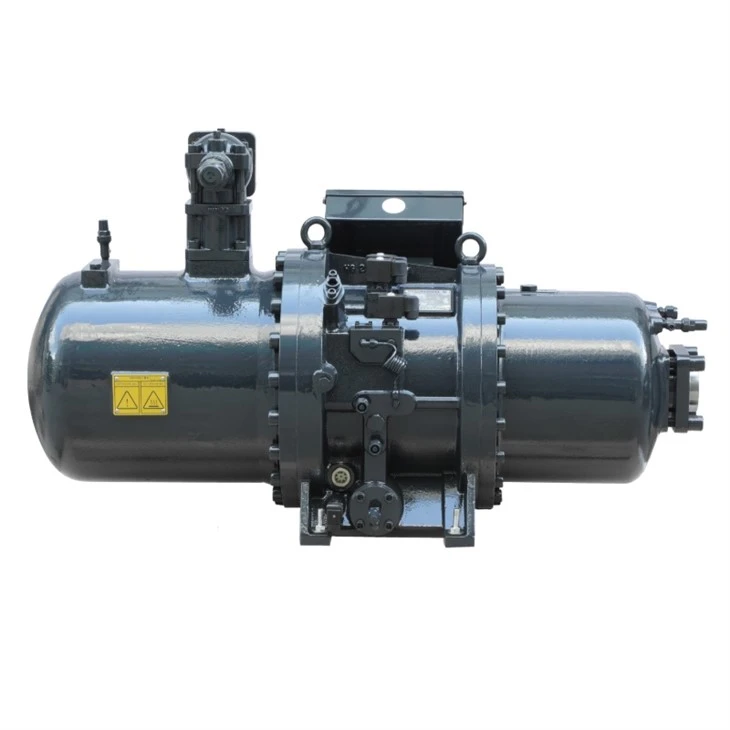

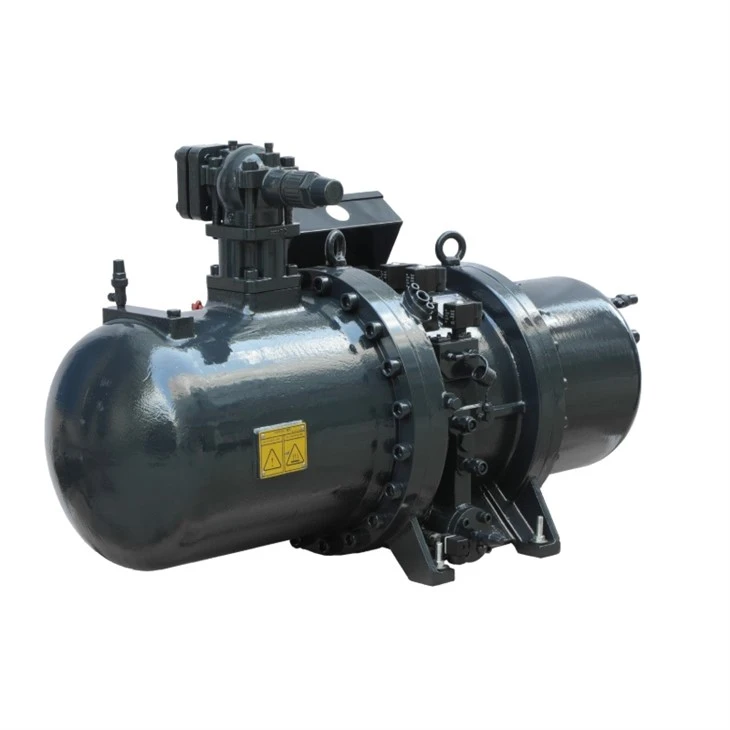

RC2-710B-Z Industrial R134a Screw Air Conditioning Compressor

Designed for commercial water chillers, heat pumps, and facility cooling plants, the RC2-710B-Z screw air conditioning compressor handles large thermal loads across continuous operations. Running at 2950 rpm under 50Hz, it delivers a high volume displacement of 713 m³/h, expanding to 858 m³/h at 60Hz. Compatible with R134a, R22, R407C, R404A, and R507A refrigerants, this unit gives system integrators a dependable platform for central climate control systems.

Central cooling installations frequently face power waste and mechanical stress caused by cycling on and off under fluctuating building heat loads. The RC2-710B-Z screw air conditioning compressor solves this issue through slide-valve capacity control, offering both 4-step options (35%, 50%, 75%, 100%) and continuous stepless modulation (35% to 100%). Matching compressor output directly to real-time cooling demands reduces electricity consumption and stabilizes system temperature during off-peak hours.

Built around a precision 5-to-6 asymmetric rotor set and an FC25 cast iron body, this screw air conditioning compressor maintains structural stability and quiet operation under elevated working pressures. Suction gas flows through internal channels to cool the motor windings prior to compression, preventing heat buildup. Internal PTC thermistors track motor and discharge temperatures in real time, signaling protection modules to shut down power if thermal or phase irregularities occur.
