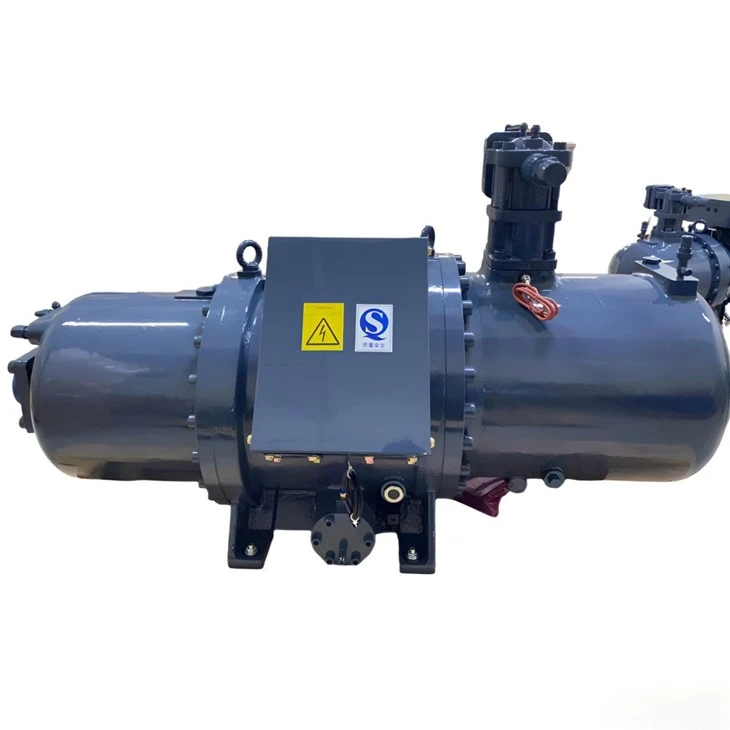

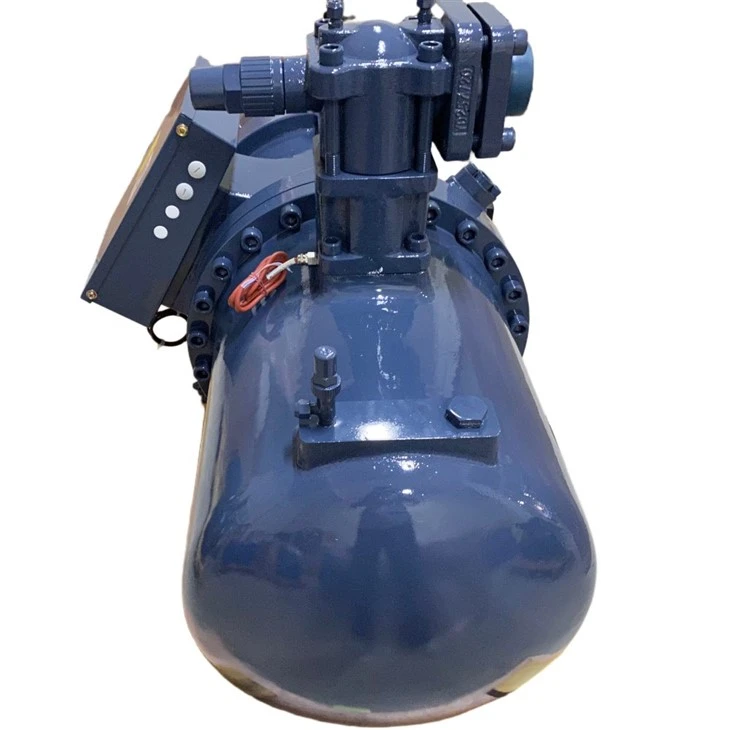

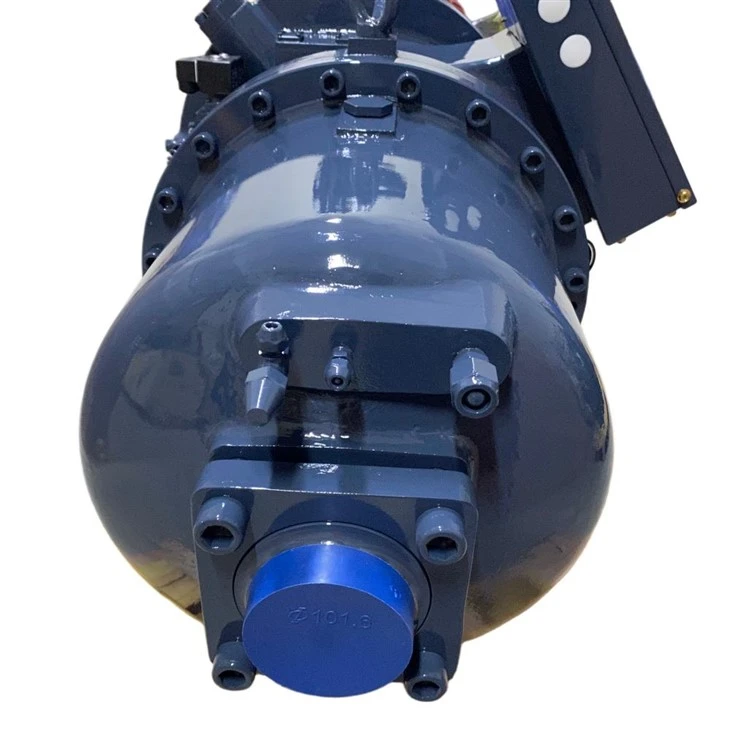

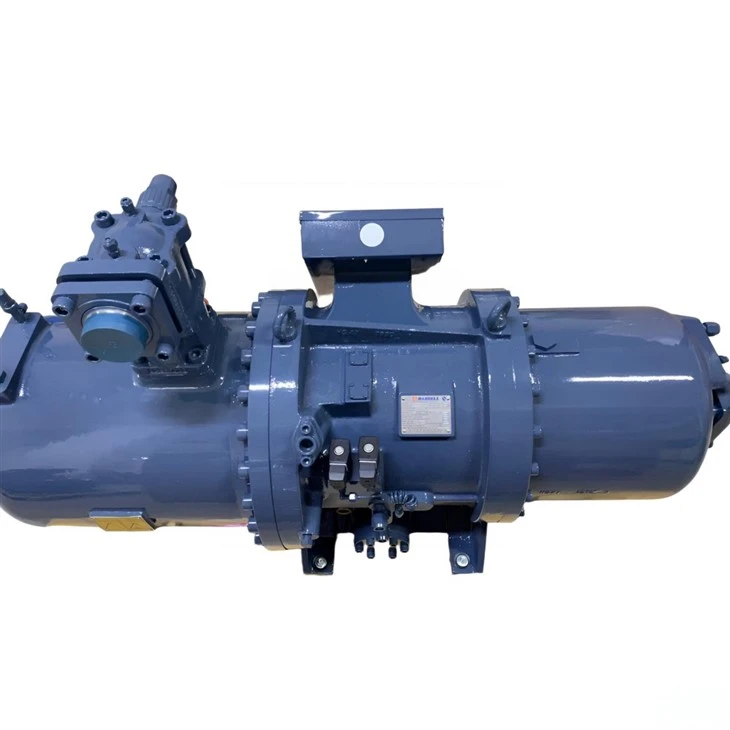

RC2-510B-Z R134a Air Cooled Refrigeration Screw Compressor
Brand:Hanbell
Model number:RC2-510B-Z
Nominal Power(60/50Hz):183/152HP
Refrigerant:R134a,R22,R407C,R404A,R507A
Rated Speed(60/50Hz):3550/2950RPM
Type:Air Cooled
Description
High-Displacement Performance and 5:6 Rotor Geometry
Engineered for heavy-duty commercial cold storage, process freezing, and industrial cooling racks, the RC2-510B refrigeration screw compressor delivers a volumetric displacement of 508 m³/hr at 50Hz with 152HP nominal output power. Built around a patented 5:6 asymmetric screw rotor profile manufactured on precision CNC rotor machining centers and inspected via 3D coordinate measuring machines.
High-Volume Oil Management and Ductile Separator
This compressor incorporates an expanded 20L internal lubricant sump alongside a direct flange-on FC500 ductile iron oil separator. The multi-stage separation system features a low-pressure-drop fine demister mesh that prevents refrigerant dilution in the lubricant and maintains high oil film viscosity. Optional 150W or 300W oil sump heaters prevent cold-start lubricant migration during extended standby periods.
Precise Load Modulation and Wide Application Flexibility
Equipped with flanged solenoid valves controlling an internal slide valve mechanism, it offers both 4-step capacity control and continuous stepless modulation. Five interchangeable Volume Index ratios allow exact matching to high, medium, or low evaporating temperatures to eliminate over- or under-compression energy penalties.
Parameter Table
| Model | RC2-510B-Z | |
| Nominal Power(60/50Hz) | 183/152HP | |
| Displacement(60/50Hz) | 611/508 m3/hr | |
| Cap.Control(%) | STEP 35-50-75-100 | |
| STEPLESS 35-100 | ||
| Lubricant Charge | 20L | |
| Weight | 780KG | |
Company Profile
Shenzhen Ruifujie Technology Co., Ltd.
Ruifujie is an established commercial refrigeration equipment manufacturer and global exporter, specializing in high-performance screw, scroll, semi-hermetic, and rotary compressor. We deliver custom OEM/ODM solutions, technical selection support, and reliable factory-direct supply chains for refrigeration contractors, cold room engineering firms, and chiller manufacturers across North America, Europe, Asia, and the Middle East.
16+ Years Experience
Sea-near Factory
Freight Cooperation
Global Shipping
Certifications
FAQ
01.What is the rated displacement and power output of the RC2-510B compressor?
02.What is the minimum load modulation percentage on the RC2-510B model?
03.What lubricant volume and separator design are utilized in this 780 kg unit?
04.What it the standard delivery lead times?
05.What MOQ and warranty support does Ruifujie offer?
Direct Factory Sourcing & Engineering Support
Partner directly with Ruifujie's application engineering team to receive factory-direct quotations and technical verification for the RC2-510B refrigeration screw compressor. Whether you are assembling custom cold storage racks, building industrial process fluid chillers, or sourcing rapid replacements for existing equipment, our B2B team provides complete technical documentation within 8 hours.
