Understanding and Preventing Liquid Floodback Damage in Industrial Refrigeration Compressor Cylinders



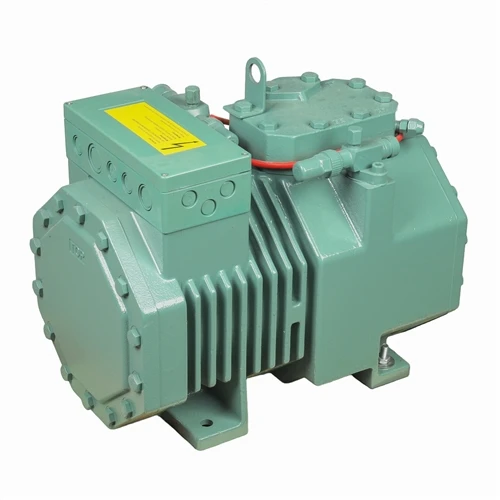

In industrial refrigeration applications-such as cold storage facilities, food processing plants, and chemical cooling systems-liquid floodback remains one of the primary mechanical threats to reciprocating and semi-hermetic refrigeration compressors. Liquid floodback occurs when unevaporated liquid refrigerant enters the compressor's suction port during operation. Because liquids are incompressible, this phenomenon leads to severe mechanical strain, physical damage to cylinder components, and premature system failure.



Common Field Symptoms of Liquid Floodback

Before catastrophic cylinder failure occurs, field engineers and maintenance teams often observe distinct operational warnings:

Frost Accumulation

Heavy frost forming along the suction line extending directly to the compressor housing.

Abnormal Cylinder Knocking Noise

Metallic clicking or knocking sounds originating inside the cylinder head due to liquid slugging during the compression stroke.

Foaming Oil Sight Glass

Rapid oil sight-glass foaming caused by liquid refrigerant diluting the crankcase oil sump during startup or load changes.

The Hydrostatic Impact on Cylinder Mechanics





During normal operation, an industrial refrigeration compressor is engineered strictly for vapor compression. When liquid refrigerant enters the cylinder chamber, pressure spikes exponentially during the compression stroke. Because liquid volume cannot compress into the clearance space, hydrostatic force exerts extreme stress on internal components:



Valve Plate Fracture: Dynamic pressure peaks exceeding the yield strength of reed steel (rated up to 1,200–1,500 MPa tensile strength) cause immediate fatigue cracking or structural shattering.



Cylinder Liner and Piston Scoring: Liquid refrigerant washes away the protective lubricating oil film on cylinder walls. Metal-to-metal contact increases friction temperatures, resulting in liner scoring and piston ring seizure.



Con-Rod Deformation: Hydrostatic forces place severe axial and bending loads on connecting rods, causing bent rods, destroyed pin bushings, and main bearing damage.



Engineered Controls and Operating Envelope Standards

To protect your refrigeration compressor and maintain long-term reliability within cold storage refrigeration solutions, systems must operate strictly within design limits

Suction Superheat Maintenance

Maintain a consistent suction superheat between 5 K and 10 K at the compressor suction valve. Proper superheat ensures complete vapor phase transition before refrigerant reaches the cylinder intake.

Suction Line Accumulator Sizing

Install dedicated accumulators dimensioned to hold at least 50% of the total system refrigerant charge, featuring internal heat exchanger coils or orifice bleed holes (1.5 mm to 2.0 mm) to safely meter liquid boil-off.

Crankcase Heating Protocols

Keep crankcase heaters (50W to 150W) energized during standby to maintain oil temperatures 10°C to 15°C above ambient suction saturation temperature, preventing oil dilution.

Expansion Valve Calibration

Calibrate thermostatic and electronic expansion valves based on peak and partial load conditions to prevent oversized valve hunting and liquid carryover.



modular-1
Conclusion and Maintenance Guidelines

Effective compressor maintenance requires continuous monitoring of suction pressure, discharge temperature, and oil clarity. By enforcing proper superheat controls and observing early diagnostic symptoms, facility operators can eliminate liquid slugging risks and extend cylinder service life across industrial refrigeration systems.
