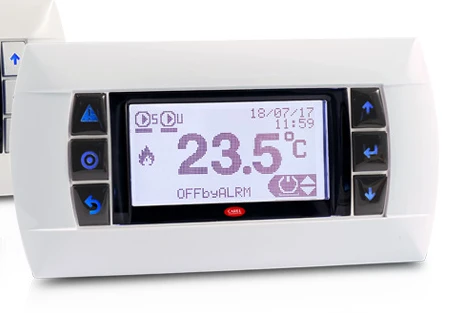

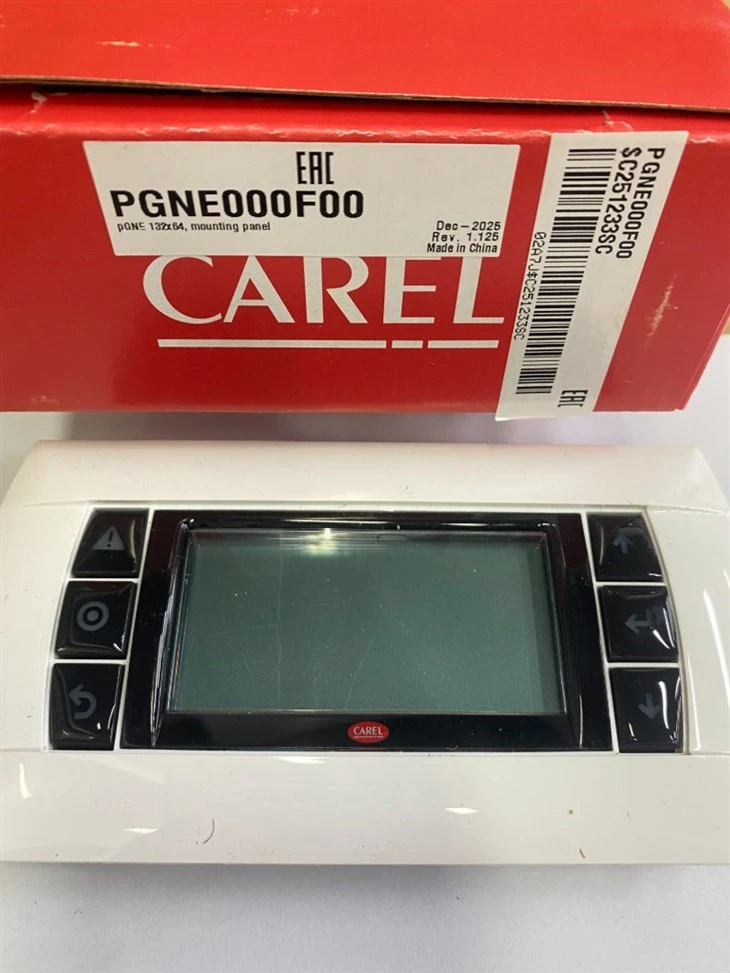

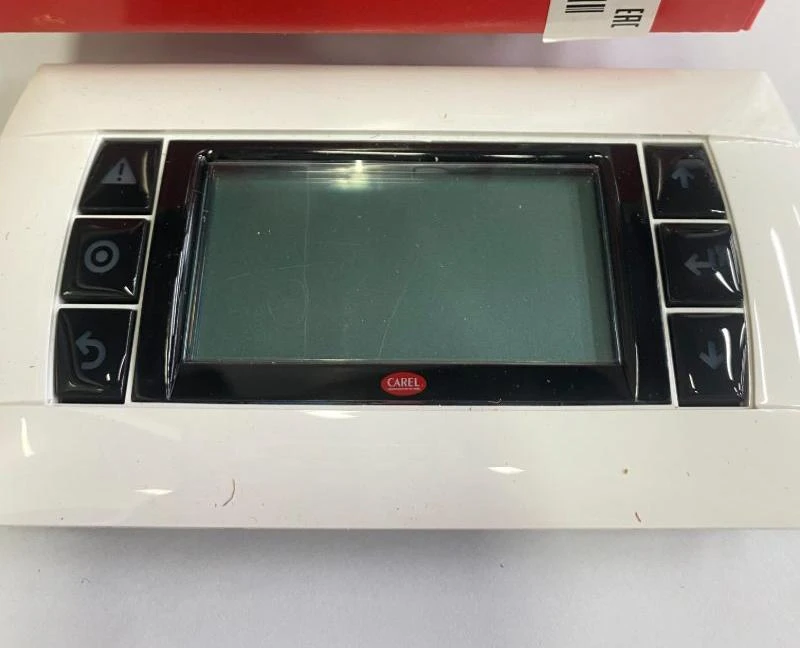

PGNE000F00 Panel Mount Graphic Display Terminal
Model:PGNE000F00
Backlighting:white LEDs
Graphic resolution:132x64 pixels
Voltage: from pCO through telephone cable or external source
18/30 Vdc protected with 250 mAT external fuse
Maximum power input:0.9 W
Description
High-Versatility Semi-Graphic User Interface
The PGNE000F00 graphic display terminal belongs to the pGDN semi-graphic terminal range engineered for the pCO sistema family, providing system integrators with extensive customization options at an affordable cost. Equipped with a 132x64 pixel backlit white screen, it clearly renders custom graphic symbols of various sizes along with international alphabets to support global HVAC/R applications.
Intuitive Keypad & pLAN Connectivity
Featuring an ergonomic 6-button keypad, the terminal replicates the standard navigational symbols used across pCO5+, pCO5+HS, and c.pCO controllers to simplify daily operation and programming. This graphic display communicates with the main pCO controller over an RS485 network via the pLAN communication protocol.
Flush Panel Mounting Design
Specially constructed for clean wall or cabinet panel installation, the unit ensures a flush, professional finish on control enclosures.
Cutout Requirements: Designed for a 127 x 69 mm panel opening with two 4 mm diameter fixing holes.

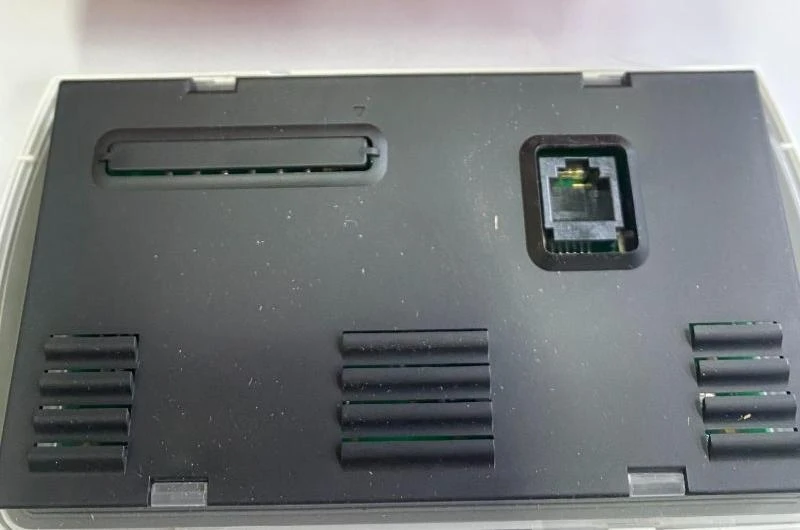

Installation Process: Connect the telephone communication cable, position the terminal body into the cutout, secure it using the provided flat-head screws, and snap the front bezel frame into place.
Parameter Table
| Model | PGNE000F00 | |
|
Text mode
|
8 rowsx22 columns, 4 rowsx11 columns
|
|
|
Voltage
|
pCO through telephone cable or external source
18/30 Vdc protected with 250 mAT external fuse
|
|
|
Maximum power input
|
0.9W | |
|
Maximum pLAN length
|
500 m with AWG22 twisted pair cable
|
|
|
pCO terminal distance
|
2 m with telephone cable
|
|
|
500 m with AWG22 twisted pair cable and TCONN6J000
|
||
|
Index of protection
|
IP65 | |
|
Operating conditions
|
-20 T 60 °C, 90% r.H. non-condensing
|
|
|
Storage conditions
|
-20 T 70 *C, 90% r.H. non-condensing
|
|
