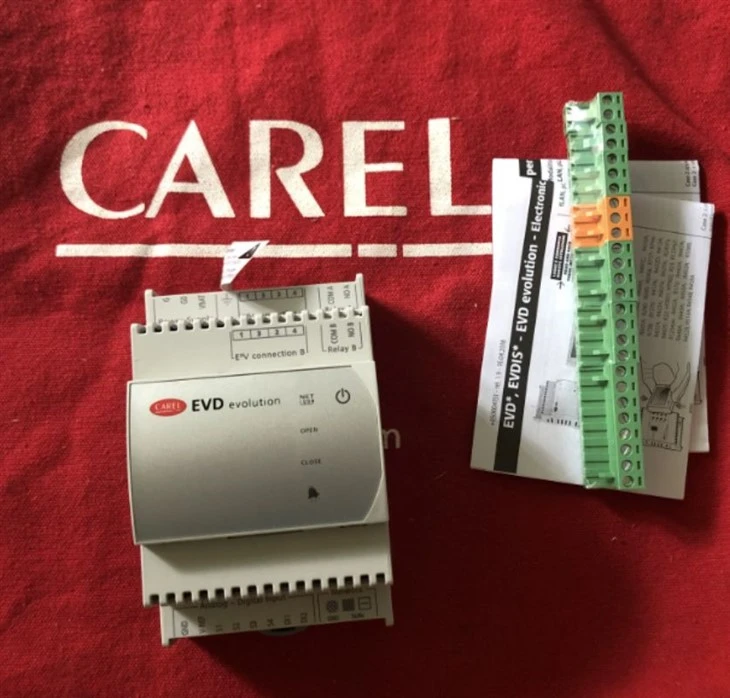

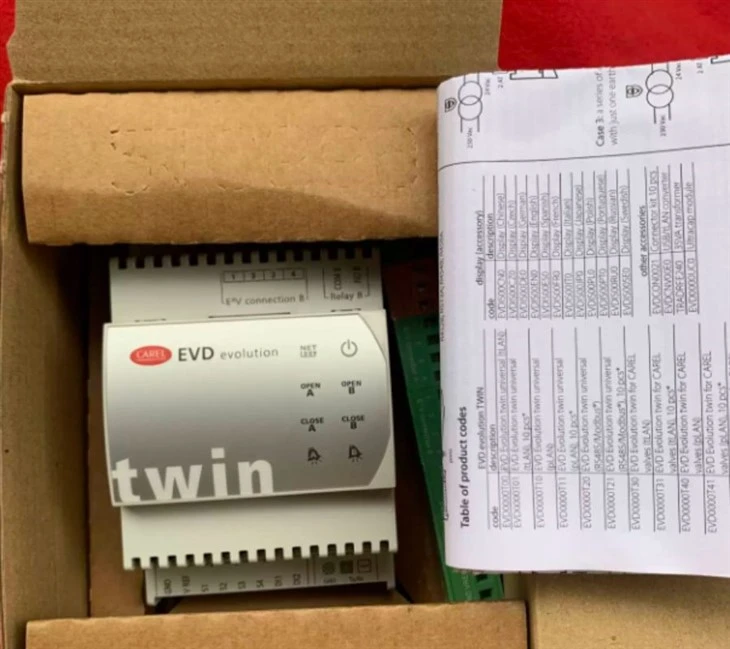

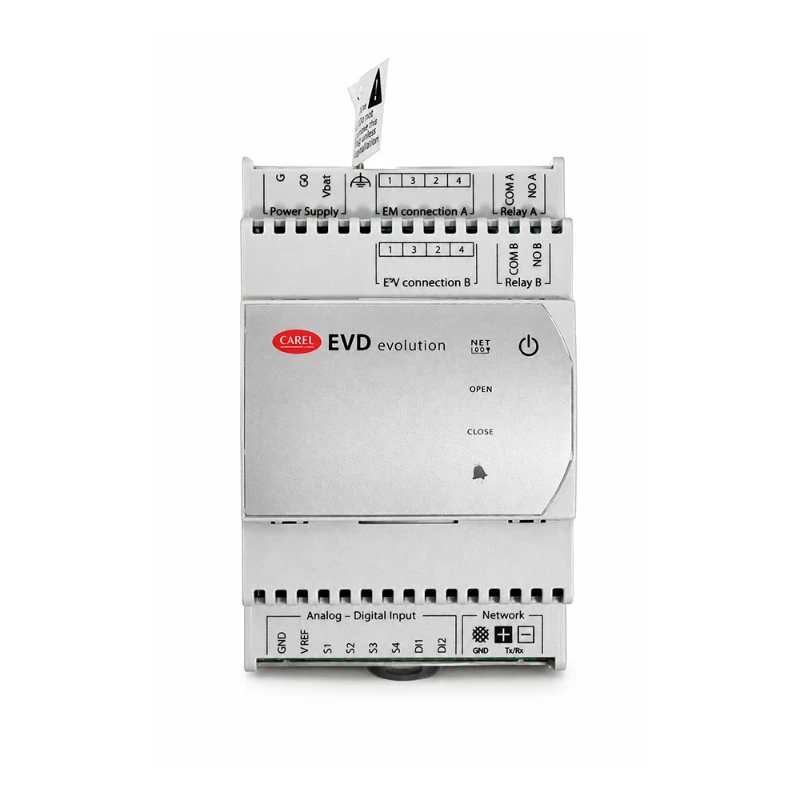

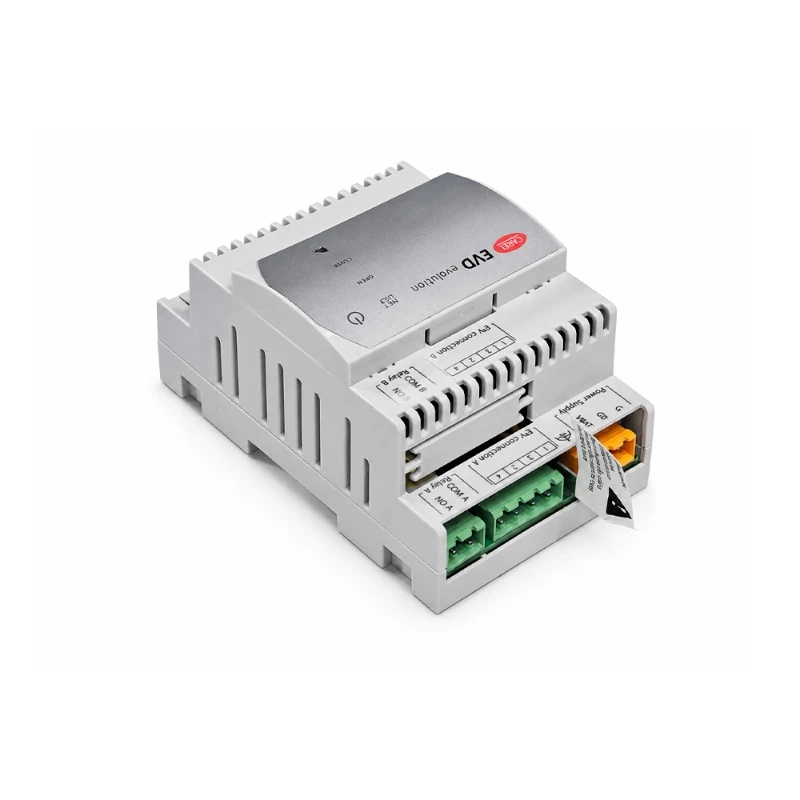

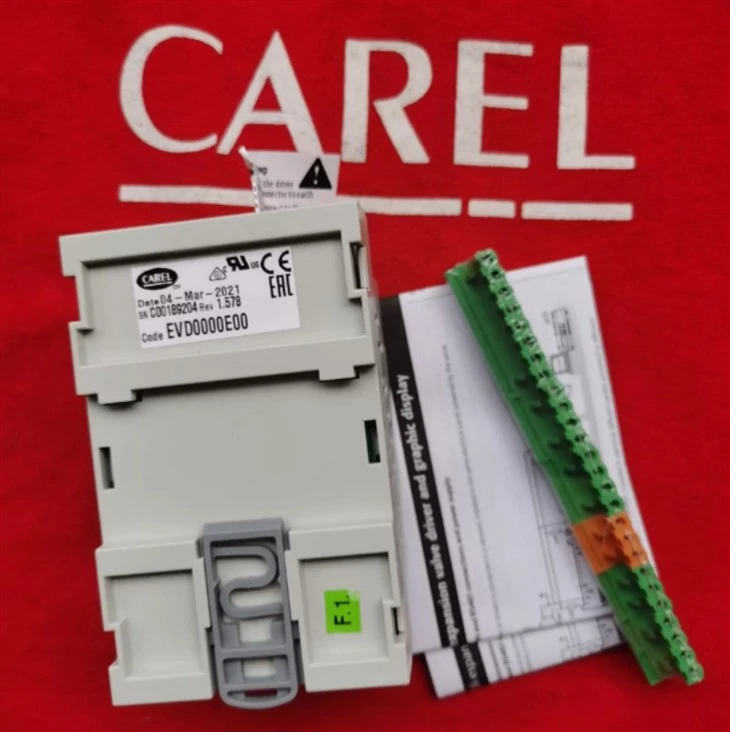

Carel EVD0000E00 Universal Electronic Expansion Valve Controller
Brand:Carel
Model number:EVD0000E00
Power Supply:24Vac(50/60 Hz)/24Vdc
RS485 serial connection:Lmax=1000m
Connectors:plug-in
Dimensions:70x110x60
Index of protector:IP20
Description
Core Functional Capabilities
Universal Valve Compatibility: Designed as a versatile electronic expansion valve controller, it supports diverse stepper motor valves and multiple refrigerants, including subcritical and transcritical CO2 circuits.
Integrated tLAN Interface: Features an incorporated tLAN serial port for direct data exchange and network integration with host programmable controllers.
Multi-Mode Operation: Supports superheat regulation, evaporator pressure control (EPR), hot gas bypass, or functions as an analog positioner driven by external 4–20 mA or 0–10 Vdc signals.
Built-In Safety & System Protection
Low Superheat: Prevents liquid floodback to protect the compressor.
MOP & LOP Control: Maximum and Low Operating Pressure protection logic to safeguard system boundaries.
High Condensing Temperature Guard: Includes Reverse HiTcond protection for CO2 cascade applications.
Hardware & Installation Features
Power Supply Flexibility: Accepts 24 Vac or 24 Vdc input.

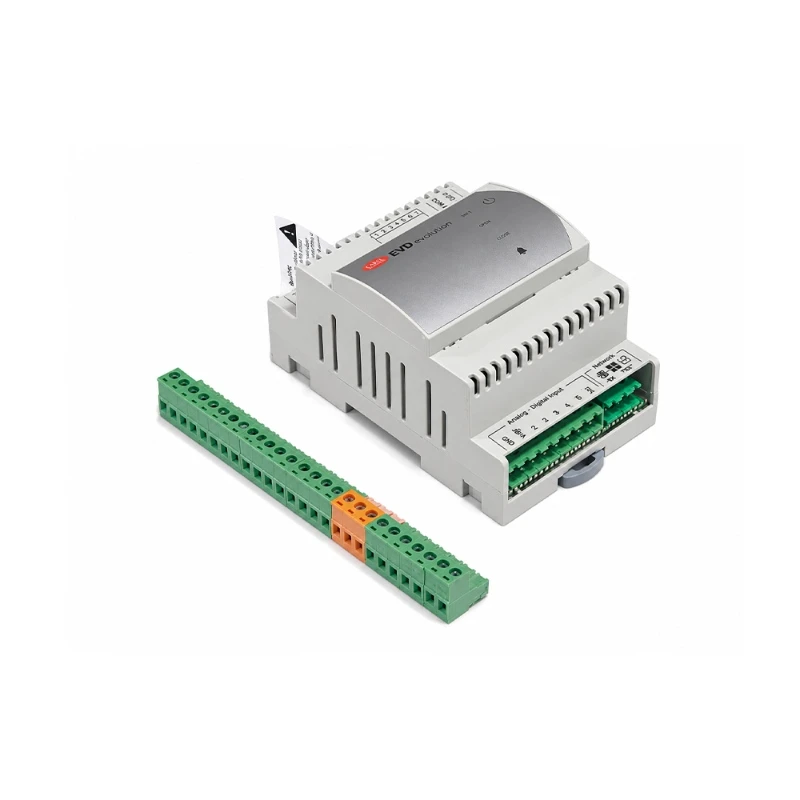

Modular Assembly: Compact DIN rail mounting with plug-in screw terminals for simplified installation.
Configurable Digital Inputs: Two digital inputs enable remote start/stop, post-defrost optimization, forced valve opening (100%), and safety backup control.
Power Loss Safety: As a reliable electronic expansion valve controller, it can trigger automatic emergency valve closure during power outages when paired with the optional Ultracap module.
Parameter Table

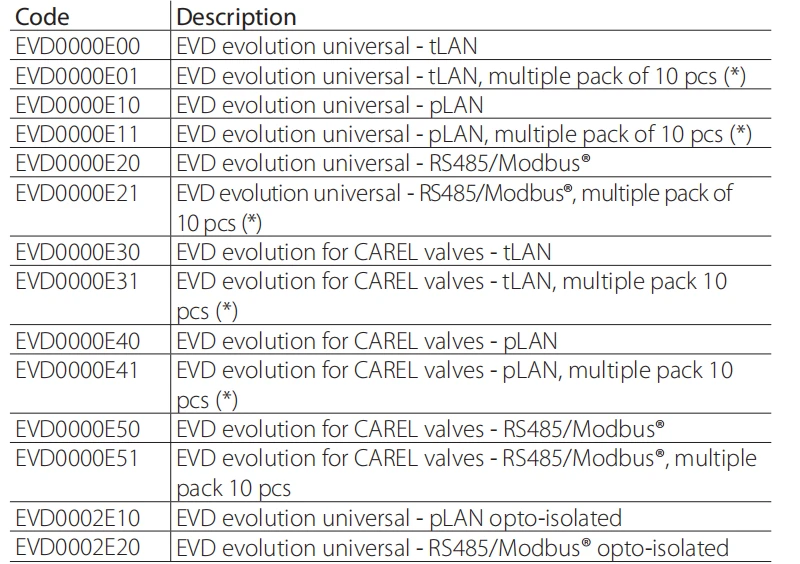

| Model | EVD0000E00 | |
|
Power supply
|
24Vac/24Vdc (+10/-15%) | |
|
Emergency power supply
|
22 Vdc+/-5%.
|
|
| Communication Interface | RS485/Modbus | |
| IP rating | IP20 | |
| ExV Driver type | EVD EVO Single | |
|
Rated impulse voltage
|
2500V
|
|
