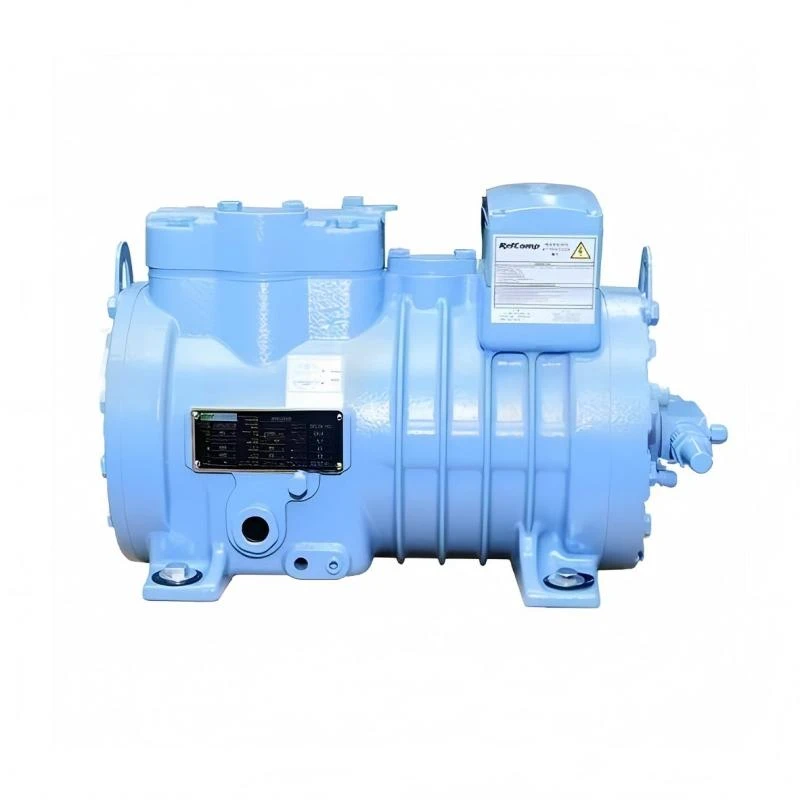

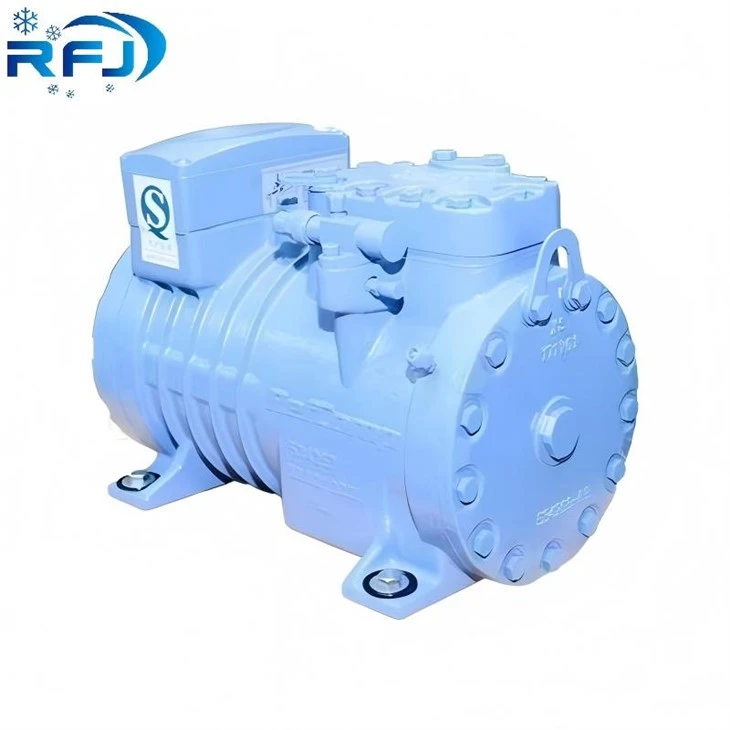

Refcomp SP2H0500 SP2H050E 5HP Semi Hermetic Compressor

Brand:Refcomp
Model number:SP2H0500,lSP2H050E
Nominal Power:5HP/3.7KW
Refrigerant:R22,R407C,R134a,R404A,R507
Exhaust volume 50/60Hz:17.5/21m³/hr
Cylinder:2

Send Inquiry

Description

Products Description

Heavy-Duty Casing & Fluid Optimization
Engineered for up to 28 bar working pressure, featuring optimized suction flow channels and a straight discharge passage that minimizes pressure loss and operational sound.
Durable Crankshaft & Piston Assembly
Custom-balanced crankshaft with precision bearings and floating wrist pins ensures continuous smooth rotation and high volumetric efficiency in demanding cooling conditions.
Integrated Motor Protection & Filtering
Equipped with an INT6982 protection module alongside a high-density built-in suction gas filter to prevent particulate ingress and protect windings against burnout.
Flexible Installation & Port Configurations
Includes 360° rotatable suction/discharge stop valves, internal high/low pressure relief valves, and a high-efficiency oil system designed for multi-refrigerant compatibility.

Parameter Table

Model	SP2H0500,SP2H050E
Nominal Power	5HP/3.7KW
Displacement(50/60Hz)	17.5/21 m³/hr
Standard motor	400V/3/50Hz PW
Standard motor	460V/3/60Hz PW
Lubricant Charge	1.8L
Weight	86KG

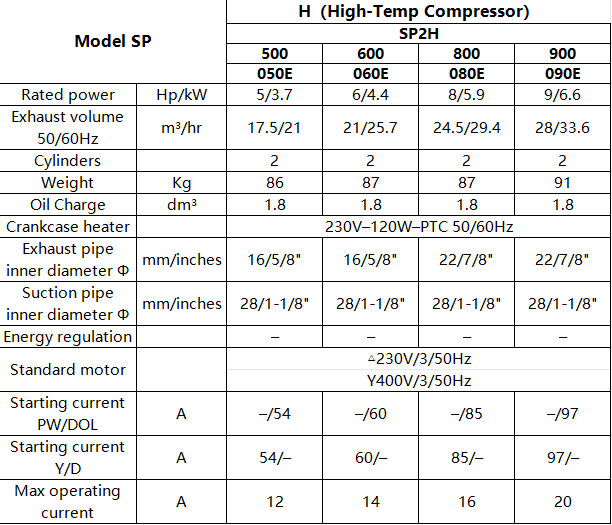

product-612-525

FAQ

Q: How do I select the proper electrical configuration for the SP2H0500(SP2H0500E) semi hermetic compressor during installation?

A: A: Check the local power supply against the motor design (Δ230V/3/50Hz or Y400V/3/50Hz). Ensure the electrical panel accounts for the 54 A starting current and standard circuit protection rated for the 12 A maximum operating current.

Q: What maintenance steps are recommended to protect the compressor's motor and internal mechanism?

A: A: Periodically inspect the built-in suction gas filter for debris, monitor the oil sight glass for correct oil levels, and ensure the INT6982 motor protection module is functioning properly to prevent thermal overload.

Q: Can the suction and discharge valves on this semi hermetic compressor be adjusted for tight piping layouts?

A: A: Yes, both stop valves can be rotated up to 360 degrees, allowing flexible piping alignment and straightforward maintenance in compact refrigeration units or rack systems.
